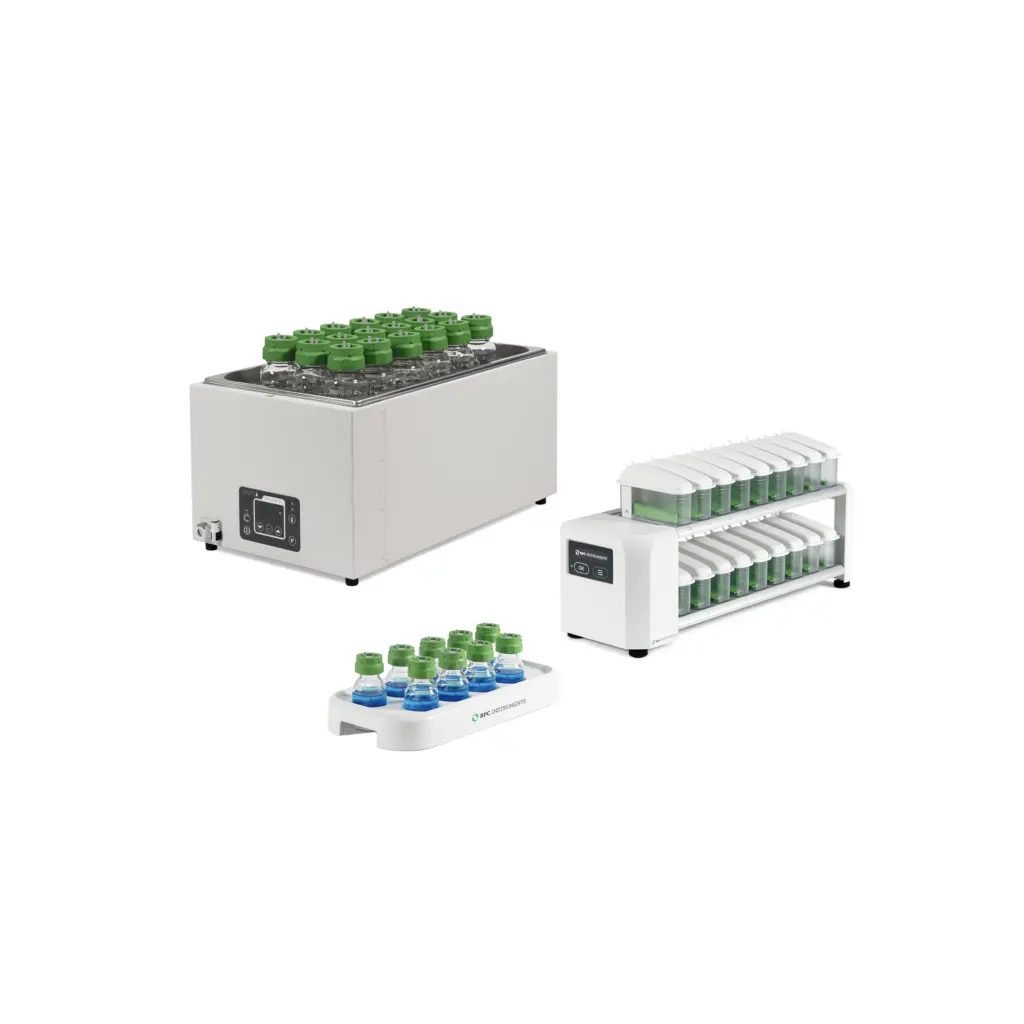

Gas Endeavour® III
Gas Endeavour® III helps laboratories monitor low gas production or gas consumption across applications such as animal nutrition, wastewater analysis, biohydrogen, fermentation studies, biogas research and microbial activity testing.
- Low gas volume and flow
- 18 or 9 reactor channels
- Aurora™ software included
Follow gas production with less manual work
Gas Endeavour® III is a laboratory instrument platform for precise evaluation of gas production or gas consumption in batch and continuous processes. It helps laboratories follow gas volume and flow over time, compare samples and reduce manual readings during long running experiments.
The system is available with 18 or 9 parallel channels and can be configured for different laboratory workflows, including standard gas measurement, animal nutrition, DUO and MAX packages. It is designed for both research and industrial laboratories that need reliable gas data from biological processes.
Mentioned in
63scientific publications
Choose between
9 or 18 channels
Run samples, blanks, controls and replicates in parallel
Software
Aurora™ included
Set up, monitor and export data in the browser
Features
Automated gas measurement
Record gas volume and flow automatically during batch or continuous tests.
Parallel reactor setup
Analyse samples, blanks, controls and replicates in parallel with 9 or 18 reactor channels.
Browser based software
Included Aurora™ software lets users set up, monitor and review experiments remotely and locally in the browser.
Automated compensation
Real time pressure, temperature and moisture compensation helps normalise gas volume and flow data to standard conditions.
Easy data export
Export experiment data as spreadsheet files with a uniform time axis for further analysis and reporting.
Controlled incubation and mixing
Maintain stable test conditions with thermostatic incubation and adjustable mechanical agitation.
Flexible measurement resolution
Choose between 2 ml and 9 ml flow cell resolutions depending on the test setup.
Modular maintenance
The modular design makes it easier to exchange many parts without sending the full system for service.
Why choose Gas Endeavour® III?
Built for flexible gas measurement
Gas Endeavour® III is designed for laboratories that need precise gas volume and flow data across different biological process applications.
One platform for several workflows
Use the system for in vitro digestibility, wastewater analysis, biohydrogen studies, ethanol fermentation, biogas research, microbial activity testing and biodegradability related workflows.
Less manual work
After experiment preparation and setup, gas measurement and data recording are automated throughout the test period.
Structured data handling
Gas measurements, experiment settings and exported results are handled in one platform, reducing the need for separate files and manual calculations.
Configurations for different needs
Choose between Standard, Animal Nutrition, DUO, MAX and Light configurations depending on your application, sample throughput and reactor setup.
Get a quote
within 48 hours
Request a quote from our sales team for Gas Endeavour® III or other respirometry systems. Share your application, expected sample throughput and the type of gas measurement you need. Our product experts can help you choose the right Gas Endeavour® III configuration and suitable accessories for your laboratory.
Trusted by teams globally
Aurora™ Software inlcuded
Aurora™ is the experiment software included with Gas Endeavour® III . It is accessed through a web browser and gives users a clear way to set up tests, follow gas production, store data and export results without installing software on an external computer.
With local data storage and remote access, laboratories can follow long running anaerobic batch or continuous tests from the lab, office or another location.
- Experiment setup in the browser
- Real time gas production monitoring
- Local data storage on the instrument
- Spreadsheet export for further analysis
- Remote access from computer, tablet or smartphone
Suitable application workflows
Animal and human nutrition
Monitor fermentation gas production in ruminant, monogastric and human gut models. Gas Endeavour® III is used for in vitro digestibility studies, feed evaluation, feed additive screening and fermentation kinetics.
Biogas research
Use gas volume and flow data to study biological conversion, microbial activity and gas production behaviour in anaerobic processes.
Wastewater analysis
Follow gas production, gas consumption or oxygen uptake in wastewater, sludge and biological treatment studies.
Biohydrogen
Measure gas production in biohydrogen potential and dark fermentation studies.
Fermentation studies
Monitor gas production or consumption during ethanol fermentation and other microbial process studies.
Microbial activity
Evaluate the behaviour of microbial communities through gas production or gas consumption under controlled laboratory conditions.
Choose the configuration that suits your workflow
Choose your incubation setup
Gas Endeavour® III can be used with a thermostatic water bath, a shaking thermostatic water bath for animal nutrition workflows, or BPC® Air depending on the configuration and application.
BPC® Air
BPC® Air can be used as an air based incubation unit for Gas Endeavour® III instead of a traditional thermostatic water bath. It provides heating and cooling from 10 to 60 °C and removes the need to refill incubation medium during long tests.

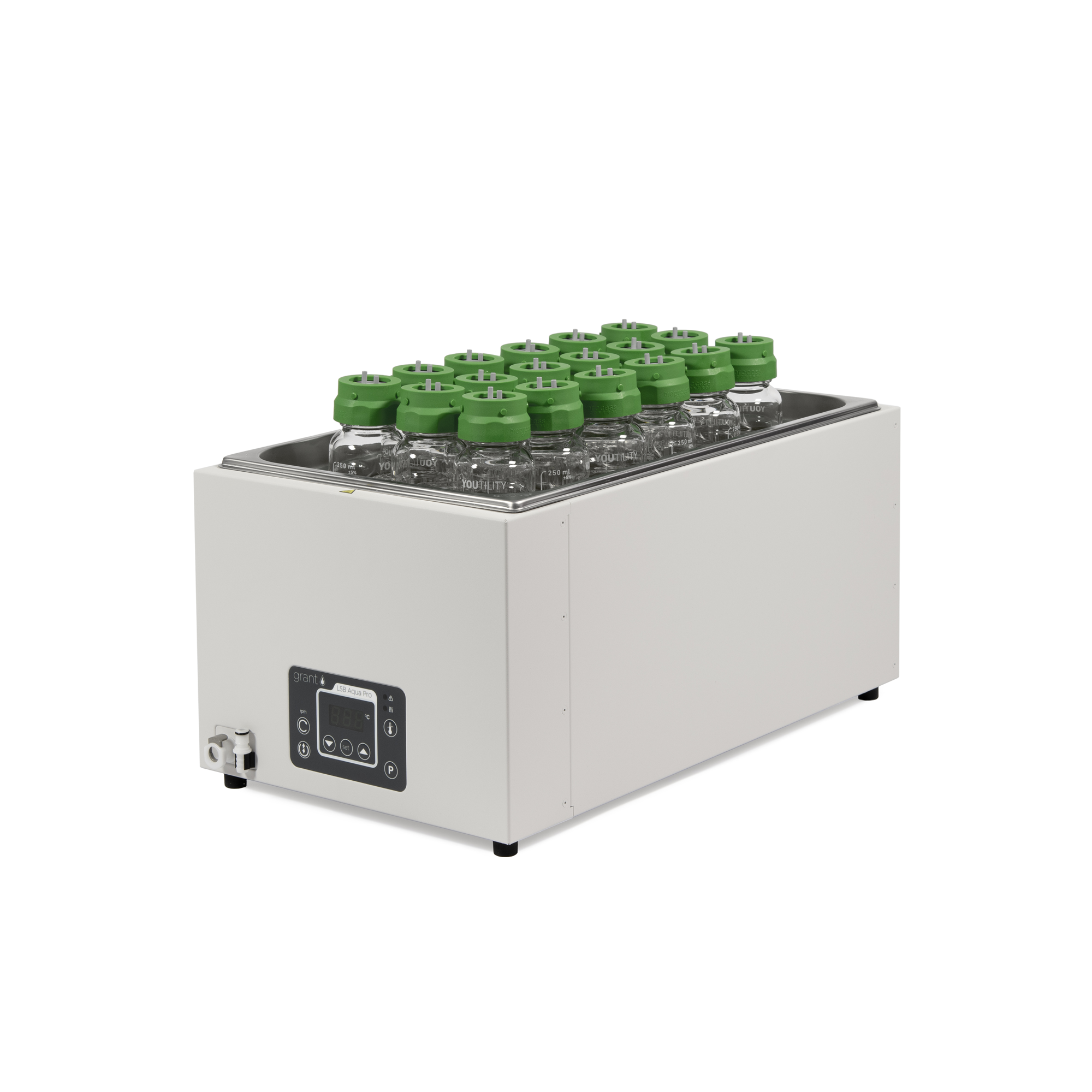

Shaking thermostatic water bath
The Animal Nutrition configuration uses a shaking thermostatic water bath with 250 mL reactors, supporting controlled incubation and mixing in smaller reactors for in vitro fermentation studies.
Thermostatic water bath
The standard incubation setup provides water based temperature control for Gas Endeavour® III workflows. It is suitable for laboratories that already use water bath incubation or need controlled conditions for biological process tests.
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
Want to know more?
Need help choosing between Gas Endeavour® III models?
Tell us about your sample throughput, reactor volume and test type. We can help you identify the right configuration.
Technical Specifications
Incubation unit (Standard)
The standard incubation unit is used for Gas Endeavour® III workflows that require controlled temperature conditions and consistent mixing. It supports 9 or 18 glass reactors and is suitable for batch and continuous biological process studies where gas production or gas consumption is measured over time.
It uses a thermostatic water bath with mechanical agitation to keep samples mixed during the experiment. Different reactor volumes are available depending on the application and test setup.
Maximum number of reactors per system
18 or 9
Reactor material
Glass
Standard reactor volume
1000 mL (with option for 500 mL) and 2000 mL
Type
Thermostatic water bath
Dimensions
56 x 68 x 32 cm
Temperature control
Up to 60 °C (203 °F) with a precision of 0.2 °C
Mixing in the reactor
mechanical agitation with brushless DC motors (adjustable interval, speed and rotation directions), max. speed 200 rpm
Power supply
–
Incubation unit (Animal Nutrition)
The Animal Nutrition incubation unit is designed for in vitro digestion and fermentation studies. It uses 250 ml glass reactors in a shaking thermostatic water bath, helping maintain controlled temperature and consistent sample movement during the experiment.
It supports 9 or 18 reactors and is suited for workflows where mixing and stable incubation are important, such as ruminant, monogastric and human gut fermentation models.
Maximum number of reactors per system
18 or 9
Reactor material
Glass
Standard reactor volume
250 mL
Type
Shaking thermostatic water bath
Dimensions
53 x 33 x 28 cm
Temperature control
up to 99 °C (210 °F)
Power supply
–
Incubation unit (BPC® Air)
BPC® Air is a dedicated incubation unit for BPC respirometer systems, including BPC® Blue. It uses air as the heating and cooling medium, with a temperature range of 10 to 60 °C, which makes it suitable for both aerobic and anaerobic BPC® Blue workflows.
Unlike a traditional water bath, BPC® Air requires no water refills during operation. It also has a floor standing design with wheels, so it can be moved and positioned more freely in the laboratory.
Maximum number of reactors per system
18 or 9
Reactor material
Glass
Standard reactor volume
1000 mL (with option for 500 mL) and 2000 mL
Type
Air to air incubation
Dimensions
117 x 77 x 90 cm (182 with tubing rack)
Weight
51.6 kg
Temperature control
10-60 oC
Mixing in the reactor
mechanical agitation with brushless DC motors (adjustable interval, speed and rotation directions), max. speed 200 rpm
Power supply
100-240 V & 50-60 Hz
Noise level
87.1 dBA / 86.2. dBC
Housing
Stainless steel, compact laminate and plastic
Operating humidity:
10-90 % RH non-condensing
Carbon dioxide absorption unit
The carbon dioxide absorption unit removes CO₂ from the gas stream before measurement, allowing Gas Endeavour® III to measure methane production directly during BMP testing. Each trap bottle is prepared with absorption liquid* and connects between the reactor and detection unit.
*Absorption liquid is not included with the instrument
Carbon dioxide trap bottles
18 or 9
Volume of carbon dioxide trap bottles
250 mL
Dimensions
54 x 27 x 12 cm (including bottles)
Recommended absorption liquid*
3 M NaOH with pH indicator*, 200 mL per bottle (not included) Absorption efficiency: >98%
Detection unit
The detection unit records gas production from up to 18 channels using liquid displacement and buoyancy. Built-in sensors and onboard electronics support stable, automated measurement, with data transferred to Aurora™ for monitoring, analysis and export.
Working principle
Liquid displacement and buoyancy
Number of flow cell units
18 or 9
Dimension of unit
55 x 19 x 17 cm
Housing
Aluminium and plastic
Built-in sensors
Temperature, Pressure, Hall, Accelerometer
Connections
Up to 60 °C (203 °F) with a precision of 0.2 °C
Display
OLED 2.8” 256 x 64 white
Power supply
12 V DC / 1.0 A with 100-240 VAC
Measurement medium
Deionised or distilled water
Operation temperature
0 – 50o C
Operation pressure
-50 – 50 mbar
Gas connector diameter
ID: 2.4 – 2.6 mm; OD: 4.2-4.7 mm
Recommended tubing size
ID: 4 mm; OD: 6 mm
Measuring resolution
9 mL and 2 mL
Detection capacity
10 million data points
Measuring range
1 to 6000 mL/h for 9 ml flow cell and 0.2 to 1500 mL/h
Repeatability
CV ≤ 1% for 9 ml flow cell and CV ≤ 3% for 2 ml flow cell
Gases
Non aggressive gases (e.g. CH4 , CO2 , H2 , N2 ,…)
Related spare parts
-
Anaerobic Standard Maintenance Package
Recommended price
€4 290,00 -
Brushless DC Motor Kit 18
Recommended price
€3 630,00 -
Festo Tubing 4/6 mm PUN-H-6X1-NT (50 m)
Recommended price
€120,00 -
Flow Cell Unit 9mL, Package 5
Recommended price
€705,00
Common questions about Gas Endeavour® III
What is Gas Endeavour® III used for?
Gas Endeavour® III is used for precise gas volume and flow measurement in batch and continuous biological processes. Typical applications include animal nutrition, wastewater analysis, biohydrogen, fermentation studies, biogas research and microbial activity testing.
What is the difference between Gas Endeavour® III and Gas Endeavour® III Light?
Gas Endeavour® III has 18 channels, while Gas Endeavour® III Light has 9 channels. The Light version is suited for laboratories with lower sample throughput.
Which gases can Gas Endeavour® III measure?
Gas Endeavour® III is used for non-aggressive gases such as methane, carbon dioxide, hydrogen and nitrogen, depending on the experiment setup.
Can Gas Endeavour® III be used for animal nutrition studies?
Yes. The Animal Nutrition configuration is designed for in vitro digestion and fermentation studies and uses 250 ml reactors with a shaking thermostatic water bath.
Can Gas Endeavour® III be used for both batch and continuous tests?
Yes. Gas Endeavour® III can be used in both batch and continuous operation modes.
Does Gas Endeavour® III require an external computer?
No. Gas Endeavour® III has embedded software and local data storage. Aurora™ is accessed through a web browser, so no software installation on an external computer is required.
Can Gas Endeavour® III be used with BPC® Air as incubation unit?
Yes. Gas Endeavour® III can be paired with BPC® Air as an air based incubation option instead of a traditional thermostatic water bath.
Scientific References
-
Impact of CO₂ flushing and headspace volume on gas and methane kinetics in two in vitro Rumen systems: A comparative study of AnkomRF and gas endeavour
Iqbal et al.,Animal Feed Science and Technology (2026)
Animal feed and nutritionJournal article2026 -
Anaerobic Digestion of Wastewater Treatment Plant Primary Sludge for Biogas and Energy Recovery
Maharaj, S.D.; Rashama, C.; Christian, R.; Masebe, T.; Inderpal-Pillay, M.; Matambo, T.S. Processes 2026, 14, 1277.
Anaerobic Digestion, WastewaterJournal article2026 -
Effect of Distillery Spent Wash Utilization on Maize Silage Fermentation and In Vitro Methane Production
Tang, Y.; Lu, G.; Zhao, H.; Li, L.; Liao, C.; Wang, P.; Zhang, Y.; Zhang, M.; Li, P.; Gou, W. Animals 2025, 15, 3146
Animal feed and nutritionJournal article2025 -
Chelator-mediated Fenton post-treatment enhances methane yield from lignocellulosic residues via microbial community modulation
Martinez, D. V., Schamback, J. Y., Davydovich, O., Mascarenas, M. R., Butler, S. C., Kolker, S., Salinas, J. E., Smallwood, C. R., Choudhary, H., Quiroz-Arita, C. Kent., M. S. Biotechnology for Biofuels and Bioproducts, 18 (73)
Anaerobic Digestion, Biomethane, PretreatmentJournal article2025
