BPC® Move
BPC® Move is a compact standalone mechanical agitator ideal for easy, reliable mixing, dispersion and dissolution of particle-free solution and slurries. It combines the strength and reliability of mechanical agitation with the ease-of-use of magnetic stirring.
- Standalone agitation
- Efficient and powerful mixing
- Compatible with standard laboratory bottles
Up to
600 rpm
stirring intensity
Compatable with
0.5, 1.0 and 2.0 L
standard GL45 laboratory bottles
Utilise the
intuitive OLED display
to switch modes and control
Leading edge mechanical mixing for laboratory applications

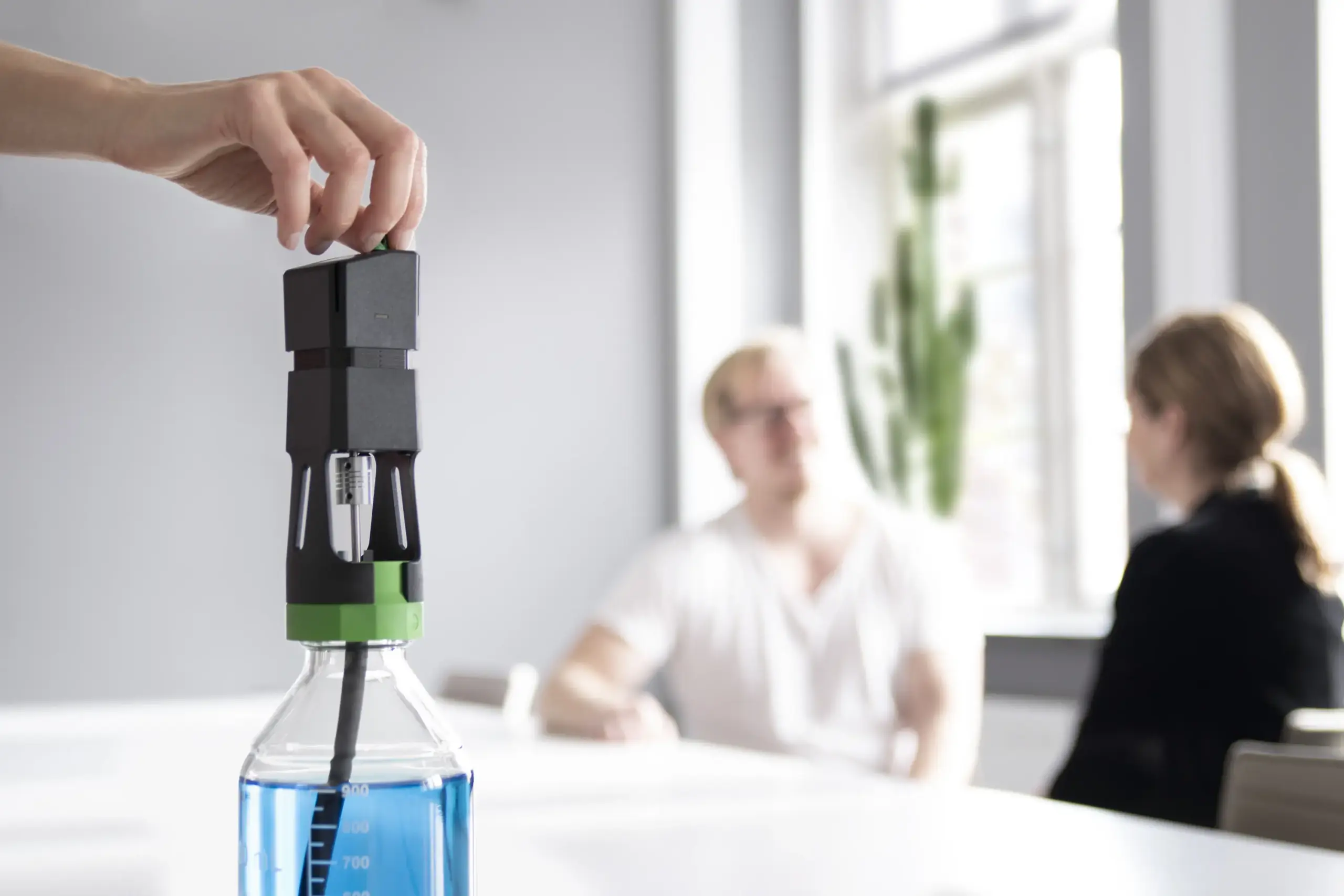

Tired of weak mixing intensity for magnetic stirrers, irregular spin, and magnets that keep falling out of place? BPC® Move is the right choice. With an integrated bottle cap and user-friendly motor-holder set for top mounting on standard GL45 laboratory flasks, BPC® Move combines the best features from magnetic stirrers and overhead mechanical mixers, providing a superior agitation experience for laboratory usage.
New way of reliable mixing
Mechanical over magnetic
Instead of a magnetic stirring bar, BPC® Move relies on a flexible agitation tube and an inserted stainless steel agitation rod, which provides clockwise or counterclockwise rotational movement. Driven by a high-quality brushless step motor, BPC® Move delivers stable, precise, and reliable agitation, minimising the risk of the irregular spin that is commonly experienced with magnetic stirrers.
Simple to use
Its unique top mounting design, modular components, and high compatibility with standard laboratory flasks makes BPC® Move easy and trouble free to work with. Within a minute, the BPC® Move can be set up for operation and the user can be confident that the media will be well dispersed.
Best of both worlds
Acting as an overhead stirrer but with closed system and laboratory flask compatibility, BPC® Move is a simple and effective tool that can be used to stir closed systems with strong agitation power. This combines the best parts of overhead and magnetic mixers.
Advanced agitation features
BPC® Move offers operation in both normal and silent mode with precisely controlled agitation. With rotation speeds ranging from 1 to 600 RPM, the demand from most types of stirring applications can be satisfied. In silent mode, BPC® Move can be used up to 220 RPM with reduced operational noise. BPC® Move also offers various other modes including alternating stirring, intermittent stirring, and user-defined cycles.
Flexible compatibility
BPC® Move is a mixing solution for different sizes of standard GL45 laboratory flasks. The basic BPC Move package includes three sizes of stirring rods that allow for mixing media in 0.5, 1 and 2 litres standard GL45 laboratory bottles. Switching between different stirring rods is seamless and give a great flexibility in dispersing different volume and types of media.
Get a Quote
Within 48 Hours
Request a quote from our sales team for optimised set-ups and process monitoring.
Technical Specifications
Rotation speed
1-600 rpm and 1-220 rpm (silent mode)
Torque
0.4 Nm
Housing
Plastic
Operation modes
Normal, silent
Power supply
24 V DC / 0.7 A
Mixing features
single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
Display
1.3” 128×64 OLED
Dimensions and weight
46 mm x 45 mm x 175 mm, 480 g
Operating temperature
-20 to 60 °C (motor operation independent of bioreactor temperature)
Operating humidity
10–90% RH, non‑condensing
Operating environment
Indoor use only
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
Related products
-

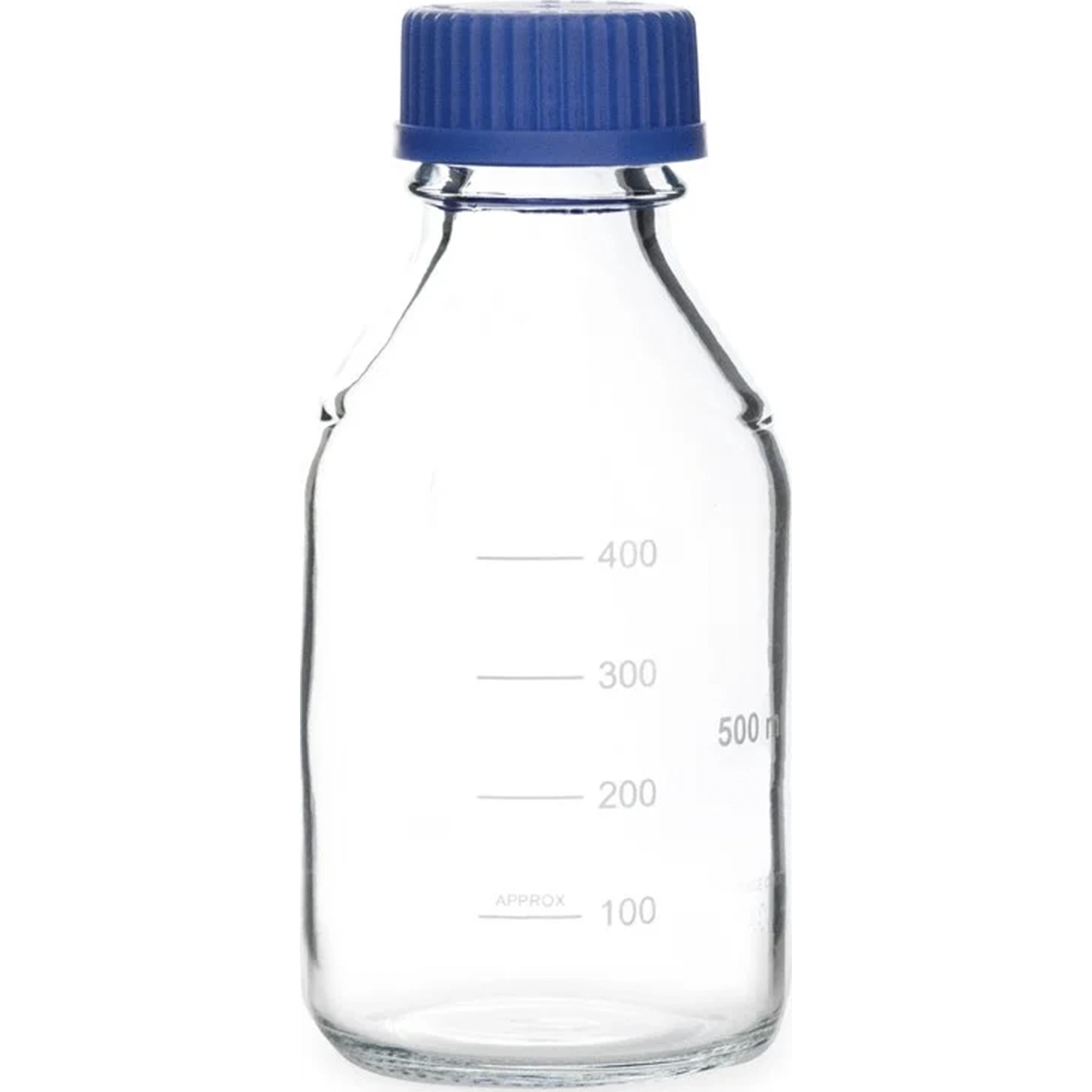

Glass Bottle 500mL, Package 10
Recommended price
€100,00 -

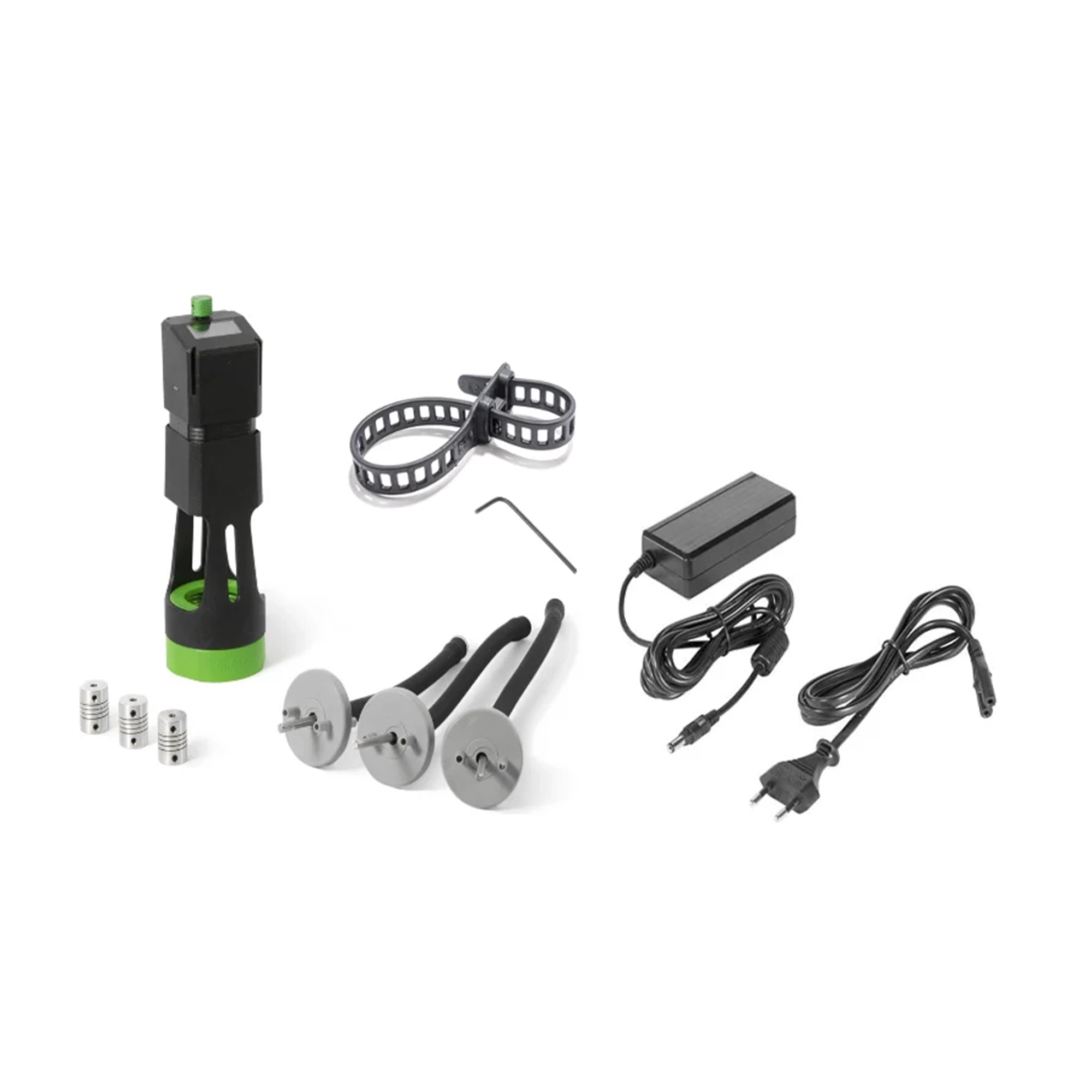

BPC Move Kit
Recommended price
€1 149,50 -

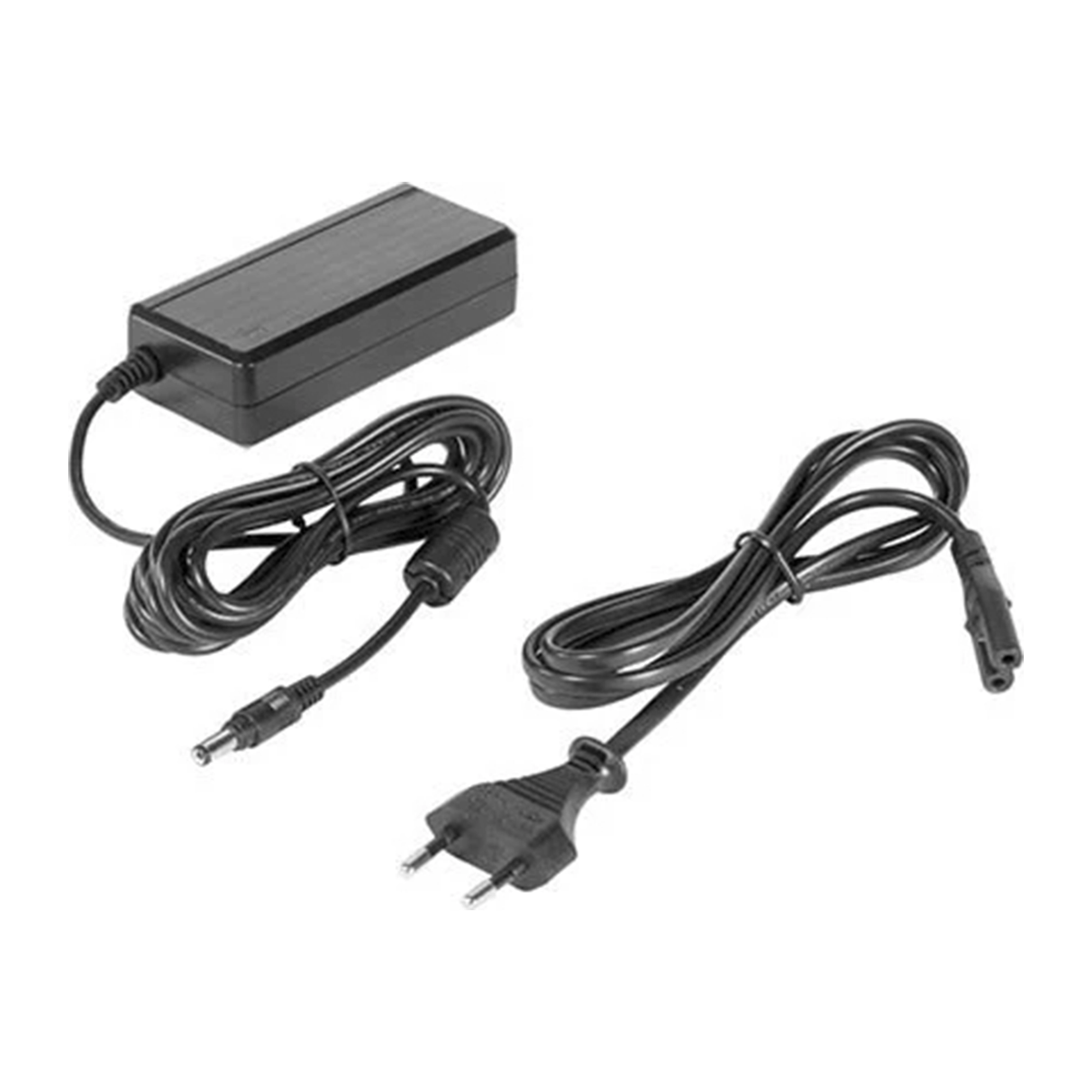

BPC Move/Motor Controller Power Adapter MK3
Recommended price
€130,00 -

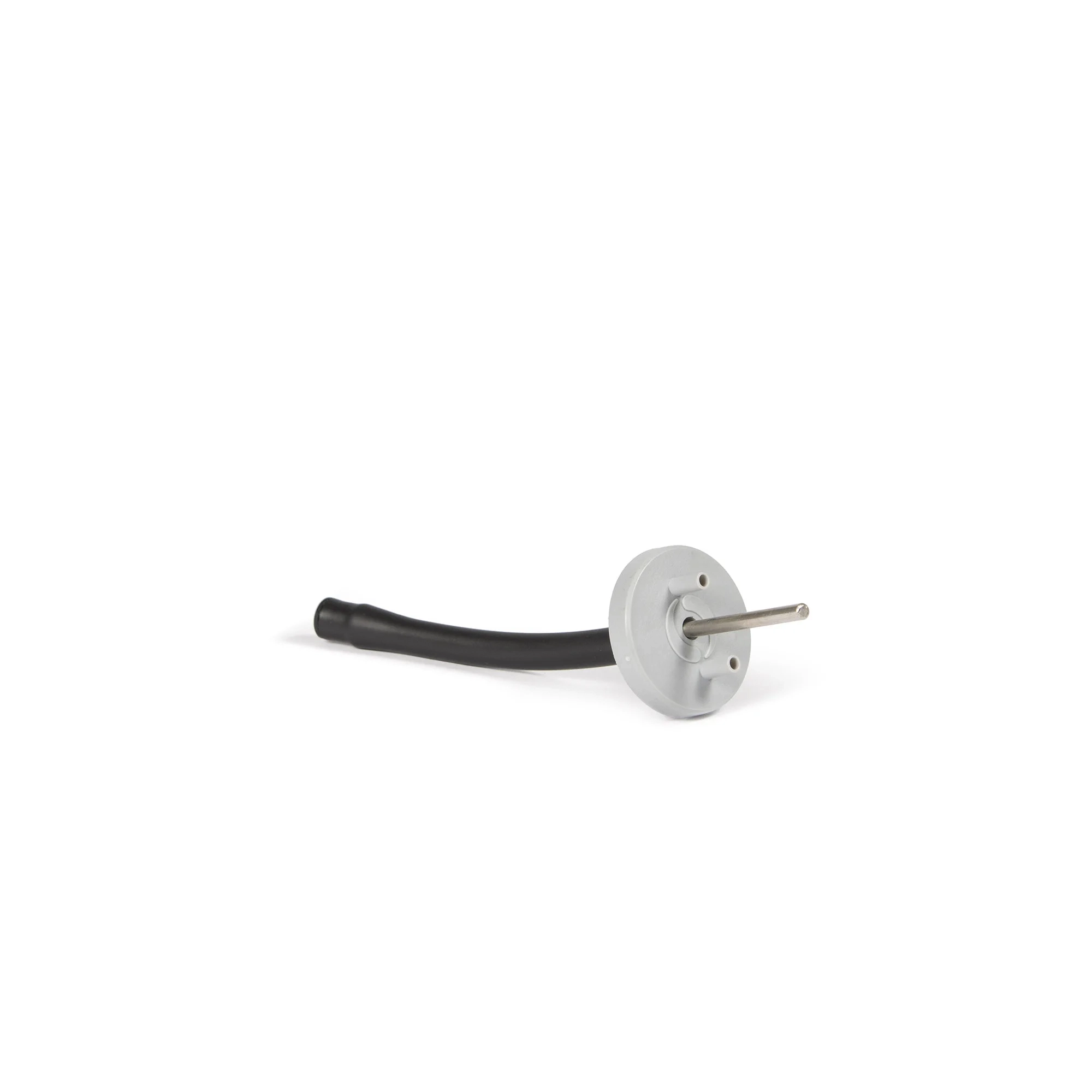

Stirrer GL 45 500mL
Recommended price
€160,00
Common questions about BPC® Move
What is BPC® Move used for?
BPC® Move is used as a standalone agitation system combined with GL45 laboratory bottles. It can be used for a range of application purposes.
Can BPC® Move be controlled remotley?
No, BPC® Move is controlled by a user interface on the instrument itself. However, we do offer Smart Agitation systems which can be operated and controlled remotely.
Can BPC® Move be used with solvents?
For non-aqueous stirring we have other stirrers available which are compatible with BPC® Move. We recommend discussing your application with our team so they can provide the perfect solution for you.
Does BPC® Move need to be connected to a power source?
Yes, BPC® Move needs to be connected to a mains power supply to be operated.
