BPC® DAQ
BPC® DAQ enables real-time acquisition of analogue sensor data alongside gas production measurements, with all signals collected and stored in the BPC® Go software.
- Integrate sensors with BPC® Go
- Connect four analogue sensors
- Compatible with Aurora™ software
Monitor and record
Temperature
with analogue sensors
Monitor and record
pH
with analogue sensors
Monitor and record
ORP / redox potential
with analogue sensors
Real-time process monitoring made easy
BPC® DAQ enables real-time acquisition of analogue sensor data alongside gas production measurements, with all signals collected and stored in BPC® Go’s software.
The BPC® DAQ is the newest accessory for your BPC® Go system. The unit connects directly to BPC® Go and can be equipped with up to four analogue sensors. In our Aurora software, signals from all connected sensors are collected and stored. The BPC® DAQ extends the use of BPC® Go by enabling monitoring of additional real-time parameters alongside gas production.
Seamless compatibility
Plug-and-play
With plug-and-play functionality, the BPC® DAQ allows straightforward integration of analogue sensors with the BPC® Go system. The unit is equipped with four analogue ports with automatic passive and active signal detection, allowing connection to a wide range of commercially available sensors without manual configuration.
Reliable data acquisition
BPC® DAQ connects with our Aurora software, ensuring your data is stored and backed up in the BPC® Go embedded computer.
Laboratory stability
Compactly designed with an anti-slip base, BPC® DAQ is perfectly suited for laboratory environments with limited space.
Get a Quote
Within 48 Hours
Request a quote from our sales team for optimised set-ups and process monitoring.
Technical Specifications
Compatible main unit
BPC® Go
Analogue inputs
4 x DC jack 2.5/5.5 mm (4-20 mA); automatic passive/active detection
Digital input
1 x RJ12 connector
Sampling frequency
From 1 minute and upwards
Operating mode
Passive data acquisition
Power supply
Fixed USB‑A cable from BPC Go (5 V DC)
Material
Plastic enclosure with embedded electronics and metal screws.
Anti-slip base
EPDM rubber pad
Dimensions and weight
Ø 74 mm × 32 mm, 90 g
Operating temperature
-20 to 60 °C
Operating humidity
10–90% RH, non‑condensing
Operating environment
Indoor use only
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
3 MB
Related products
-

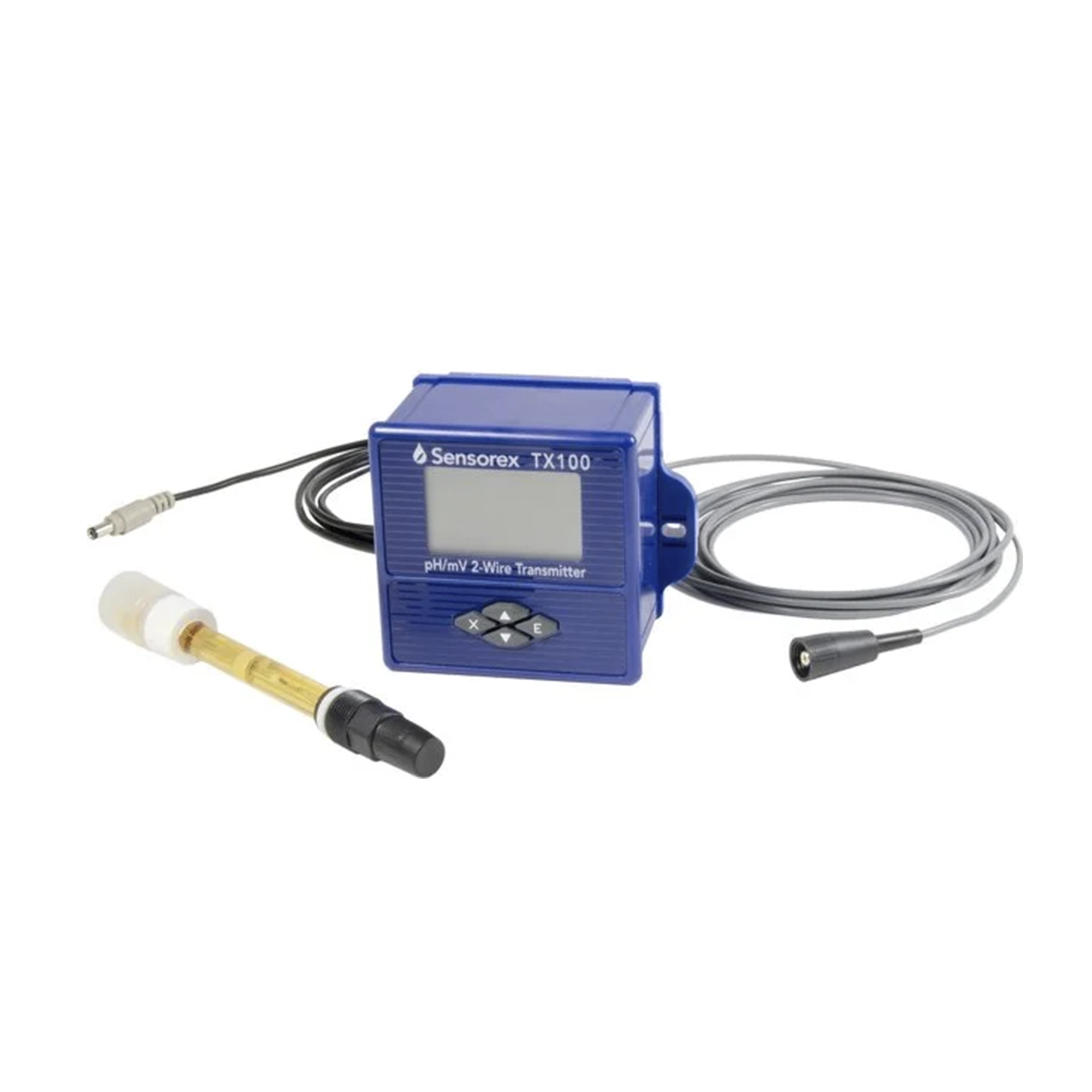

pH Kit
Recommended price
€1 390,00 -
ORP Kit
Recommended price
€1 510,00 -

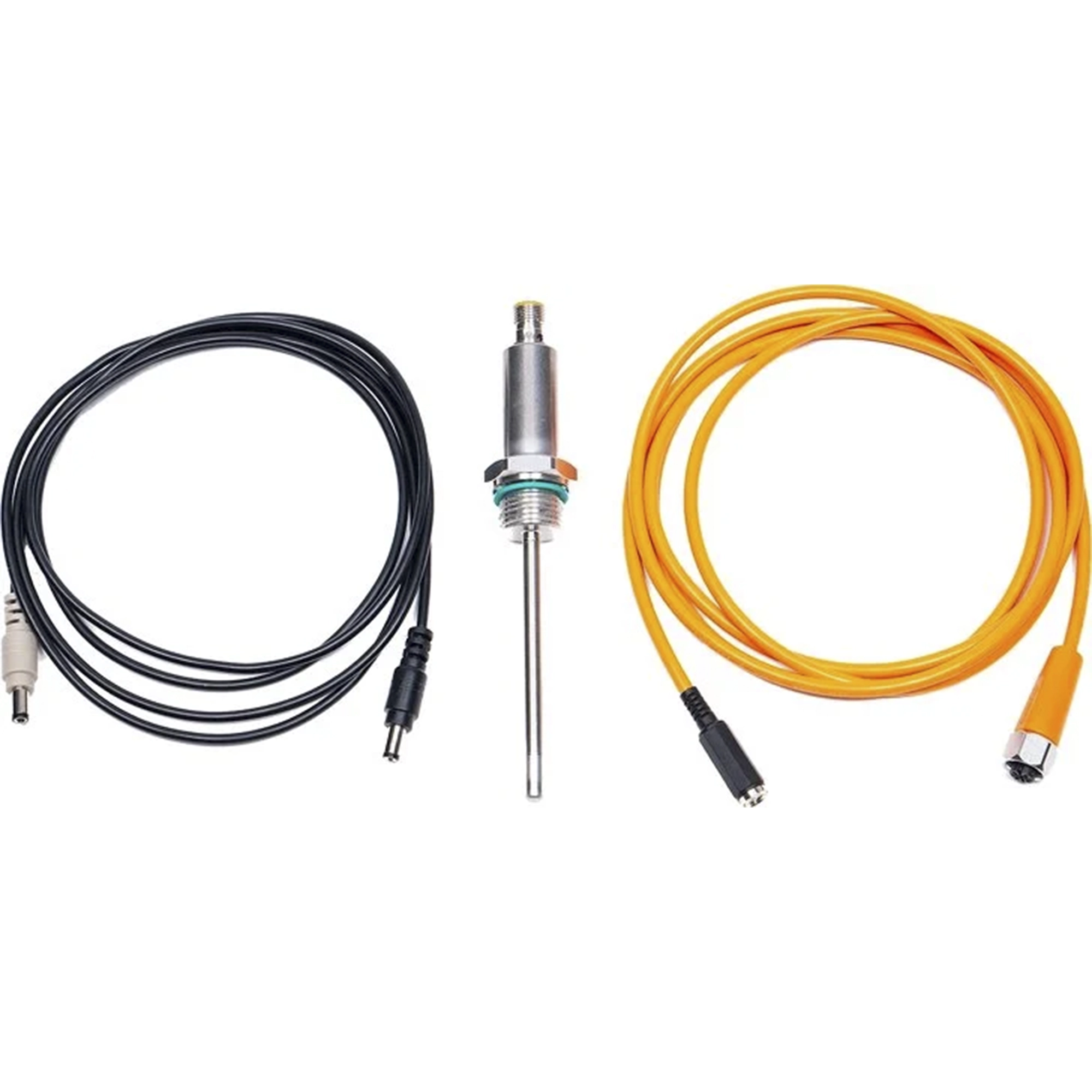

Temperature Kit
Recommended price
€530,00 -
BPC Go
Recommended price
€3 058,00
Common questions about BPC® DAQ
What is BPC® DAQ used for?
BPC® DAQ is used in combination with BPC® Go to expand BPC® Go’s capability by connecting environmental sensors to the system.
Can BPC® DAQ be used standalone?
No, BPC® DAQ is designed to be used in combination with BPC® Go hardware and software.
Can a digital sensor be connected with BPC® DAQ?
BPC® DAQ has a port for digital sensors, but software compatibility has not been implemented yet.
Talk to an expert about BPC® DAQ
Share your application and measurement needs. Our product specialists can help you choose the right instruments and suitable accessories for your laboratory.
