BPC® Connect
BPC® Connect is a network based coordination hub that turns multiple BPC® Go units into one centralised system. Connect up to six units and control and monitor them through a single interface in Aurora software, with data stored in one place.
- Connect six BPC® Go
- Centralised data storage and control
- Aurora™ software
Centralise your data with
AuroraTM software
from up to 6 units
View and export
live data
from all connected units
Combine with up to
24 analogue sensors
when used with BPC® DAQ

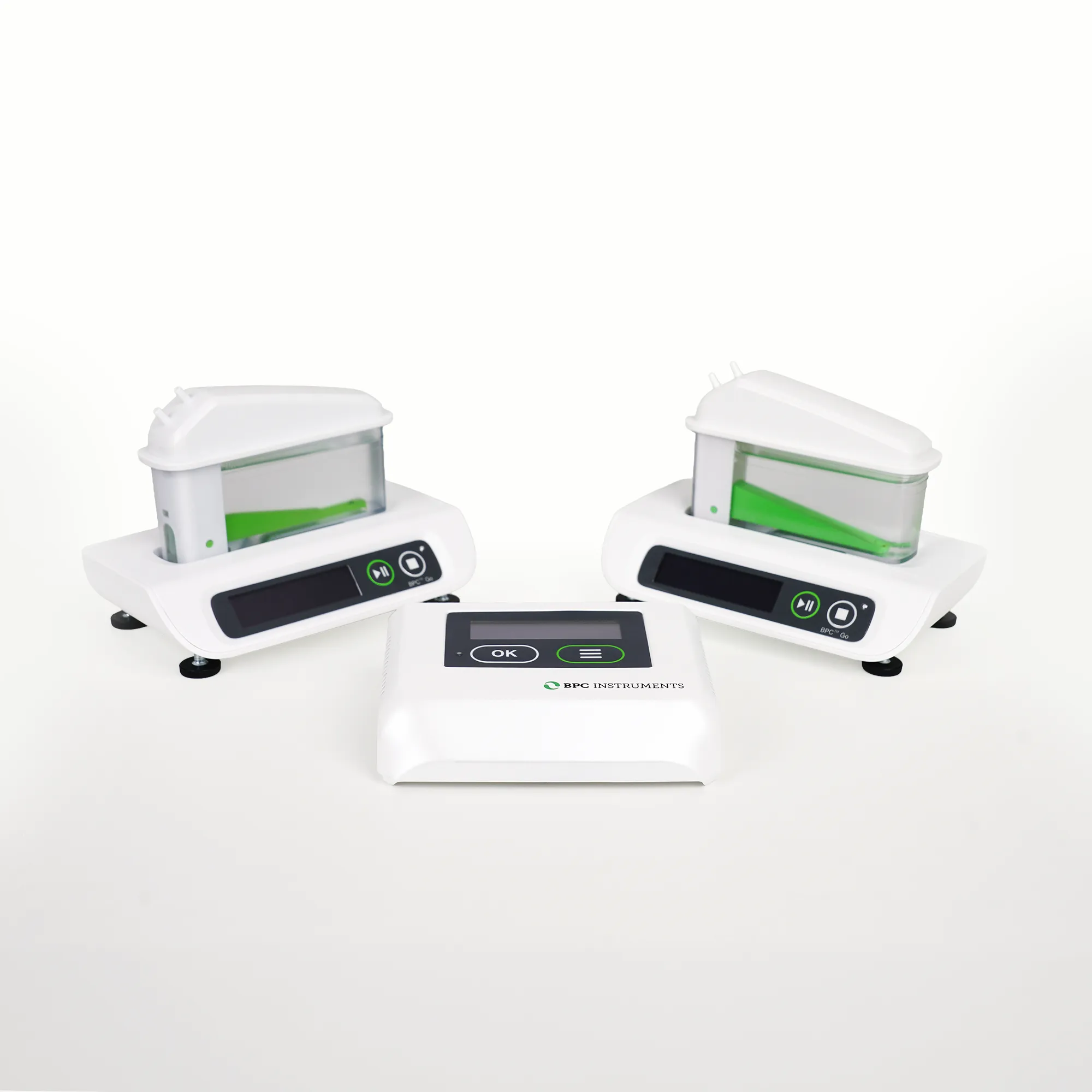

Turn multiple BPC® Go units into a connected system
BPC® Connect links up to six BPC® Go units on the same network and lets you run them through BPC’s web software Aurora as a single system. You get central storage for all connected units, plus an easier way to work across labs, rooms, or shared setups where several people need access to the same dataset.
Connect once, then manage everything
Connect your BPC® Go’s
Pair BPC® Connect with your network, then connect up to six BPC® Go units the same way. Aurora finds the units on the network and lets you bring them into one setup, without a long configuration.

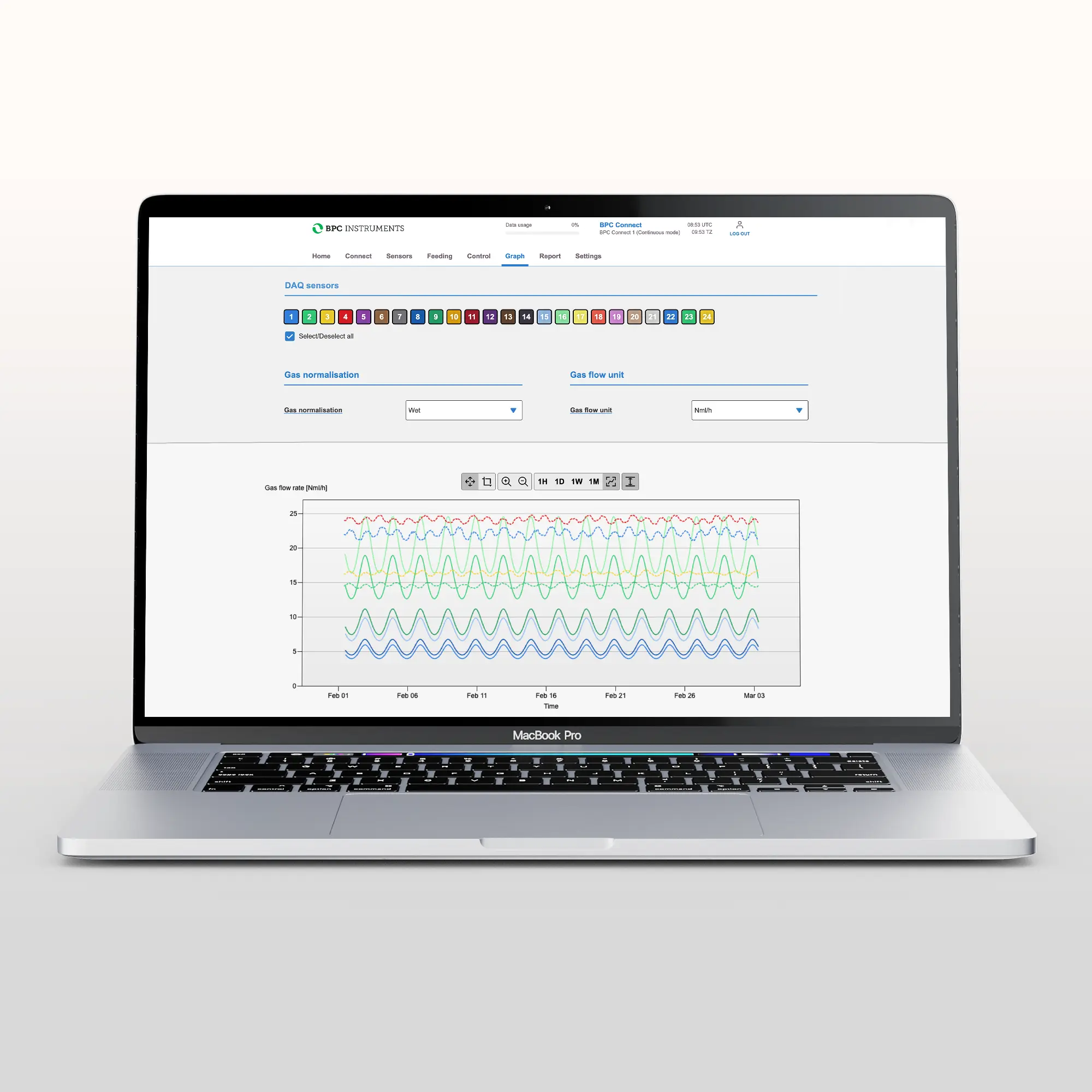

Run everything in Aurora
Use Aurora’s web interface to start and stop recordings, follow live results, and export data. All connected units are handled from one place, which makes day to day work faster when several people share the same setup.
Expand when you need to
Add more BPC® Go units over time and keep the same workflow in Aurora. If you also use BPC® DAQ, you can log data from up to six gas flow measurement units plus up to 24 additional analogue sensors in the same system.
Get a Quote
Within 48 Hours
Request a quote from our sales team for optimised set-ups and process monitoring.
Technical Specifications
Function
Centralised coordination unit for multiple BPC® Go instruments
Communication method
Local network (Ethernet)
Display
2.8 inch OLED, 256 x 64 pixels, white
Navigation controls
2 membrane buttons
Power supply
12 V DC, 1.0 A (AC adapter 100 to 240 VAC)
Connectivity
Ethernet, USB A
Dimensions and weight
150 mm (W) x 110 mm (D) x 35 mm (H), 245 g
Operating temperature
-20 to 60 °C
Operating humidity
10–90% RH, non‑condensing
Operating environment
Indoor use only
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
3 MB
Related products
-

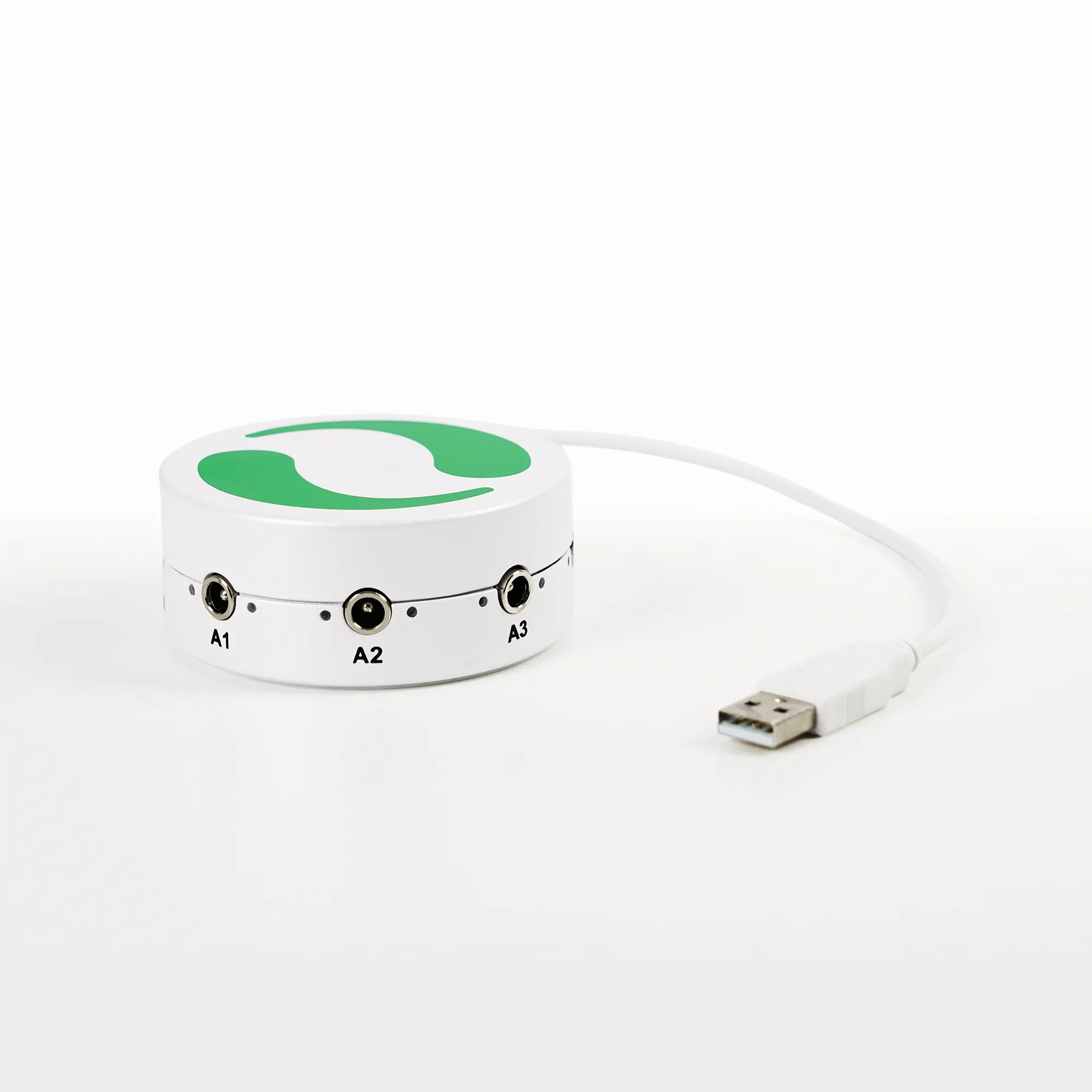

BPC DAQ
Recommended price
€1 400,00 -

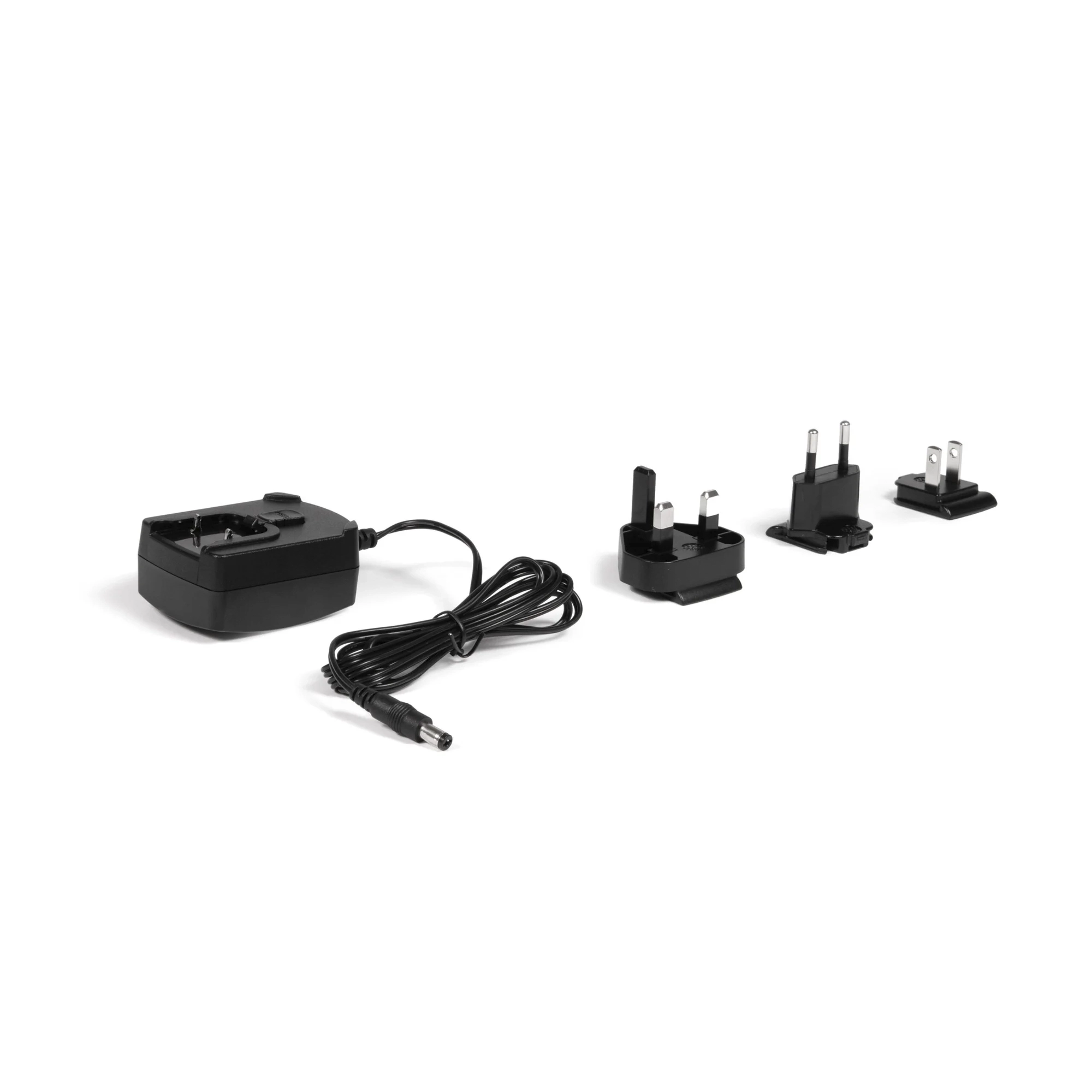

Main Unit Power Adapter MK 3
Recommended price
€130,00 -
BPC Go
Recommended price
€3 058,00 -
BPC Connect
Recommended price
€3 400,00
Common questions about BPC® Connect
What is BPC® Connect used for?
BPC® Connect is used to connect up to six BPC® Go units and collate data in one centralised system and software.
Can BPC® Connect be used standalone?
No, BPC® Connect is designed to be used in combination with BPC® Go hardware and software. It can not measure anything alone.
Can BPC® Connect be used with BPC® DAQ?
BPC® Connect and BPC® DAQ can be used together via BPC® Go. Up to four analogue sensors can be connected to each BPC® Go, creating the potential for a complete system with up to 6 gas measurement units and 24 analogue sensors.
Does BPC® Connect need to be directly connected to each BPC® Go?
No, so long as the BPC® Go units and the BPC® Connect are connected to the same network, the systems can be linked and centralised.
Talk to an expert about BPC® Connect
Share your application and measurement needs. Our product specialists can help you choose the right instruments and suitable accessories for your laboratory.
