Smart Agitation
From standalone agitators, to full agitation systems and mechanical stirring for bioreactors, BPC Instruments offers a range of mechanical agitation systems to suit your needs. Powerful, reliable and easy to use, discover a new type of mixing that will significantly improve your laboratory experience.
- Standalone agitators
- Smart, remote access agitation systems
- Strong motors for bioreactors
Reliable and efficient mechanical mixing for laboratory applications
If you are tired of weak mixing intensity for magnetic stirrers, irregular spin, and magnets that keep falling out of place, then our agitation systems are the right choice. With integrated and user-friendly mounting, our agitators are suitable for all your mixing needs. Combining the best features from magnetic stirrers and overhead mechanical mixers and provides a superior agitation experience for laboratory usage.
Designed to fit your reactors, BPC’s agitation systems are available in a range of sizes and styles. For glass reactors 500 mL to 2L, our agitation systems rely on a flexible agitation tube and an inserted stainless steel agitation rod. For our larger bioreactors, powerful mechanical stirring is achieved using a propeller fitted stirrer rod with a range of mixing power available to suit your needs.
New way of reliable mixing
BPC® Move
BPC® Move is a compact standalone mechanical agitator ideal for easy, reliable mixing, dispersion and dissolution of particle-free solution and slurries. It combines the strength and reliability of mechanical agitation with the ease-of-use of magnetic stirring. Discover a new type of stirring that will improve user’s laboratory experience significantly.
Smart Agitation System

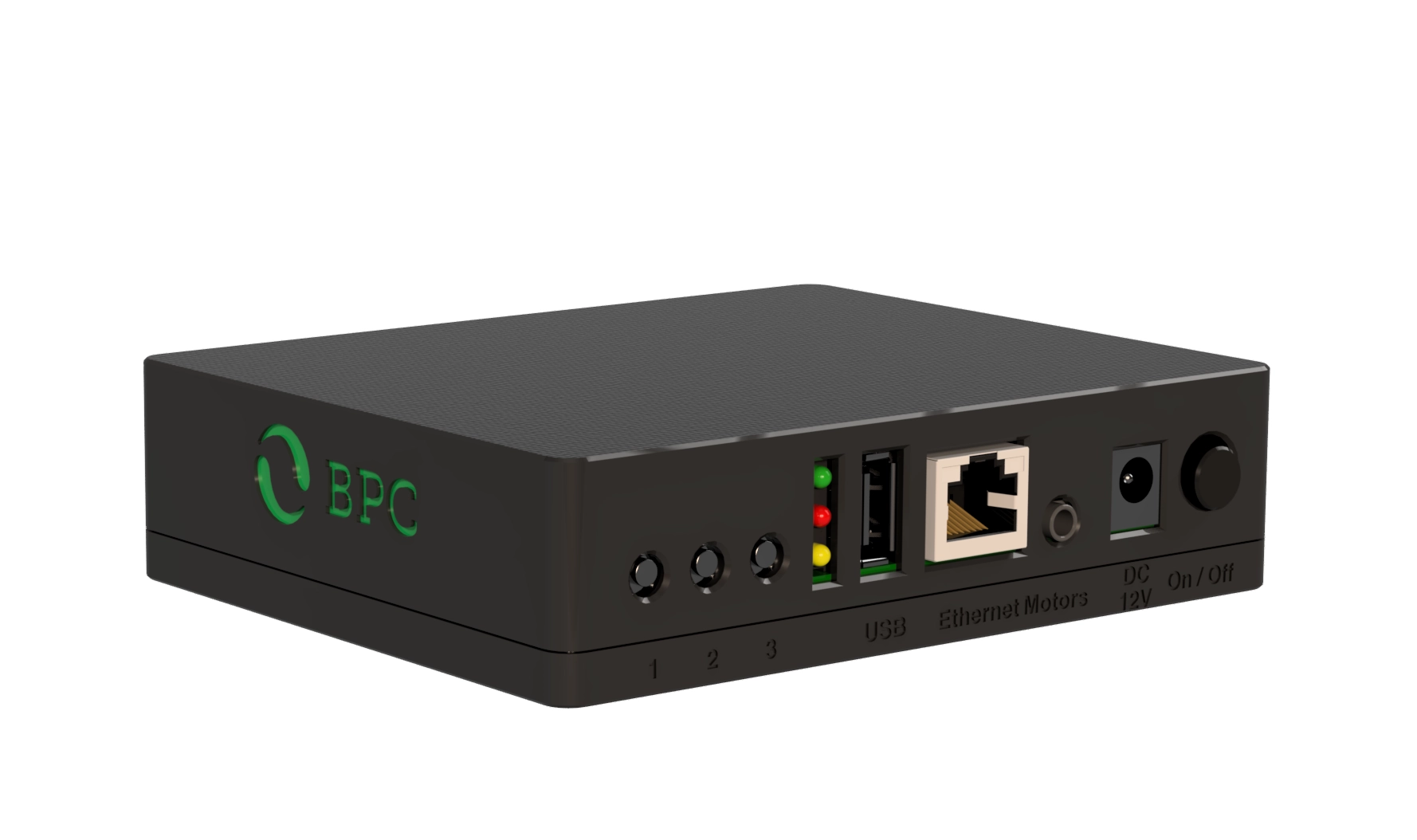

By connecting to a standard motor controller, the Smart Agitation System allows a user to control motors without any additional instrumentation. It provides the speed and direction control for the Brushless DC Motors, as well as software for remote or local access and control.

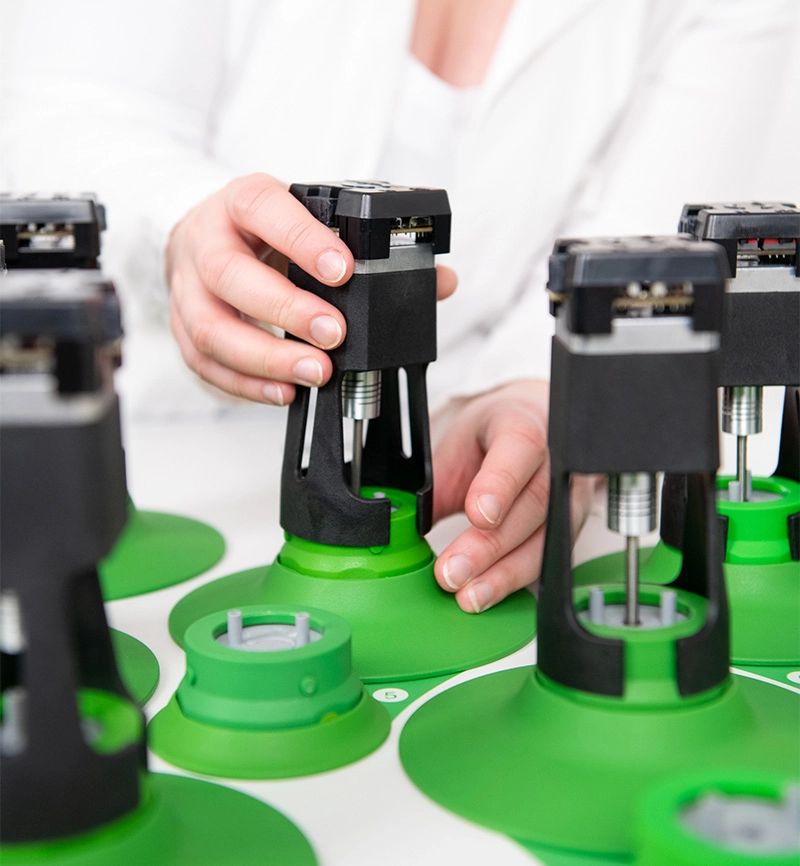

Standard Agitation System
Our unique agitation system that comes as standard with BPC Instrument systems (AMPTS, BPC Blue, Gas Endeavour) and can also be bought as a standalone motor kit. Controlled remotely by our AuroraTM software, the standard agitation system is compatible with GL45 laboratory models and is available in 500 mL, 1000 mL and 2000 ML sizes.

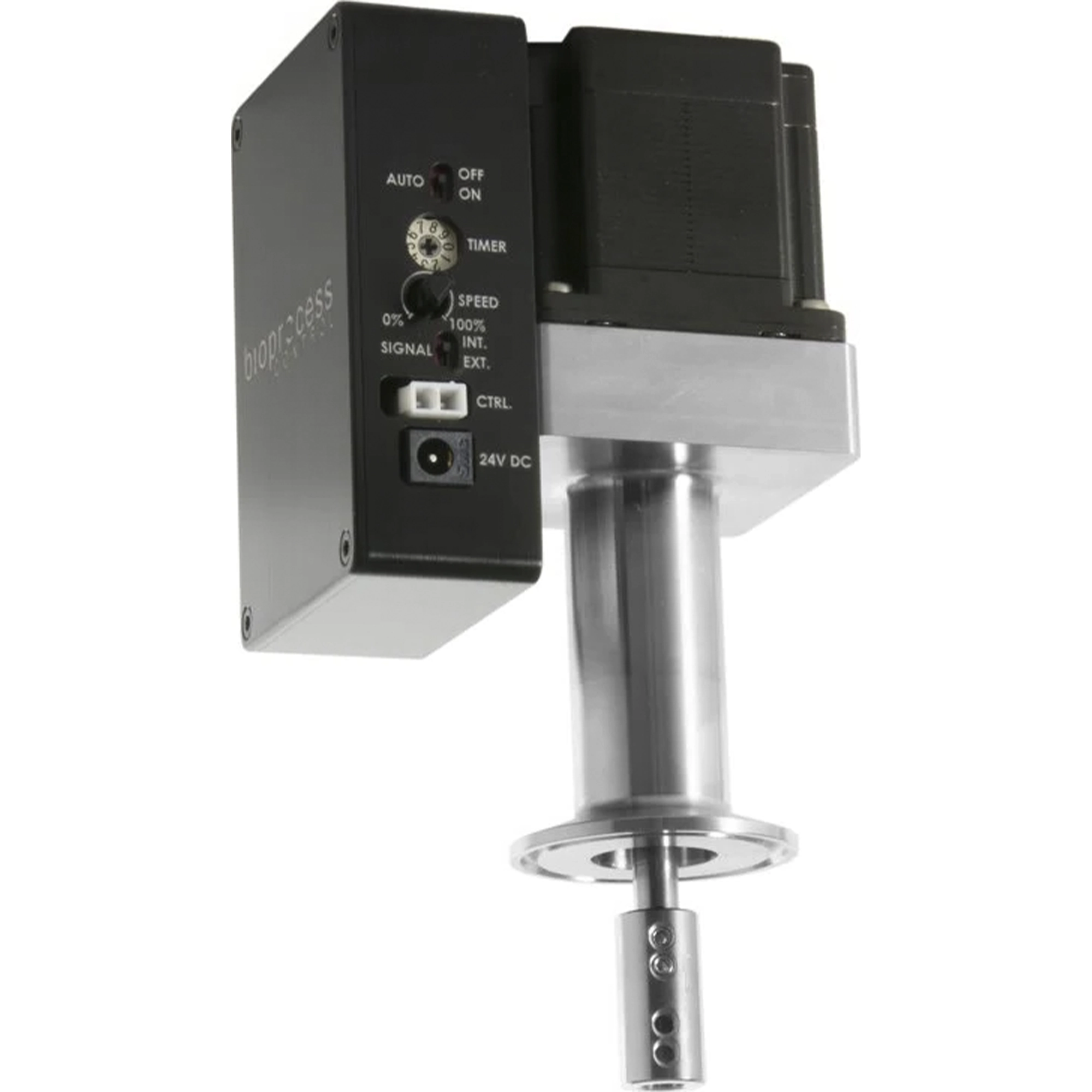

CSTR Agitator
The BPC CSTR Agitator is a long, brushless DC motor controlled agitator specifically designed for our CSTR bioreactors. Fitted with a propeller at the end of the shaft, the CSTR agitator ensures your bioreactors are mixed efficiently while allowing for both analogue or remote control (via our AuroraTM software).
BPC Strong Agitator
The BPC Strong Agitator is our bespoke agitator for tough stirring requirements. Like the CSTR agitator, it is a long, brushless DC motor controlled agitator specifically designed for our bioreactors. However, the Strong Agitator comes with more than double the torque to stir high viscosity mixtures.
Get a Quote
Within 48 Hours
Request a quote from our sales team for optimised set-ups and process monitoring.
Technical Specifications
BPC® Move
For standalone agitation needs
Rotation speed
1 – 600 rpm, 1 – 220 rpm (silent mode)
Torque
0.4 Nm
Operating modes
Normal, silent
Mixing efficiency
High
Mixing strength
Medium to high
User interface
1.3” 128×64 OLED screen
Compatibility
Compatible with GL45 standard laboratory. Available as 500 mL, 1 L and 2L
Typical usage
Standalone, high viscosity or long term mixing
Dimensions
4.6 x 4.5 x 17.5 cm
Weight
0.48 kg
Mixing features
Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
Standard Agitation
For synchronised mixing and remote control of up to 18 agitators.
Rotation speed
10 – 200 rpm
Torque
0.1 Nm
Operating modes
Normal
Mixing efficiency
High
Mixing strength
Medium
User interface
via Aurora software and motor controller unit.
Compatibility
Compatible with GL45 standard laboratory models, BPC Instruments systems or Smart Agitation system for standalone useage.. Available as 500 mL, 1 L and 2L
Dimensions
4.9 x 4.4 x 14.3 cm
Weight
0.38 kg
Typical usage
Long term mixing in batch or coupled with BPC Instruments’ systems
Mixing features
Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
CSTR Agitator
For mixing larger bioreactors.
Rotation speed
15 – 300 rpm
Torque
0.7 Nm
Operating modes
Normal
Mixing efficiency
High
Mixing strength
Medium
User interface
via Aurora software and motor controller unit.
Compatibility

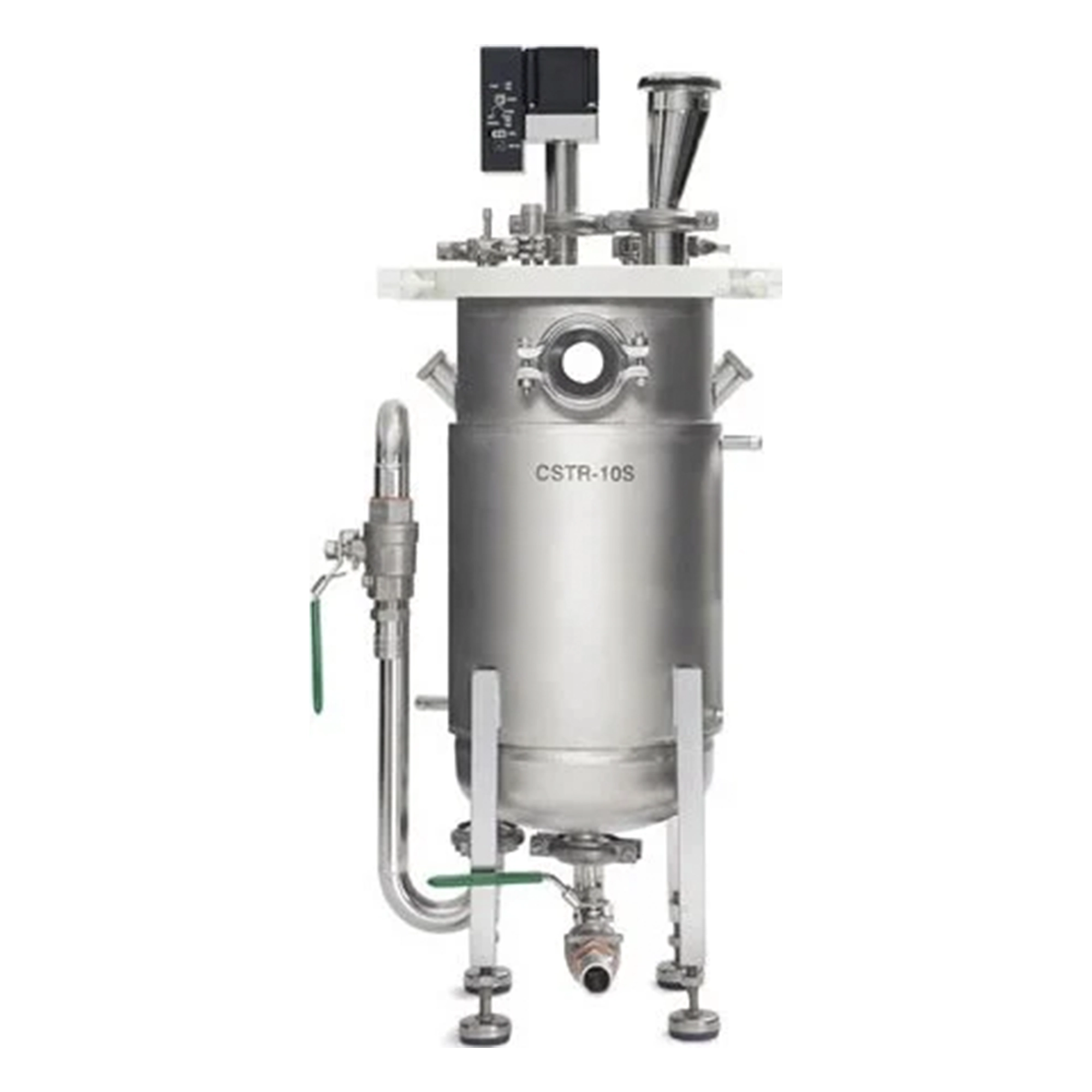

Compatible with CSTR bioreactors, available from BPC Instruments
Dimensions
9.3 x 6.7 x 16.6 cm
Weight
1.75 kg
Typical usage
Long term mixing in large CSTR bioreactors
Mixing features
Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
BPC Strong Agitator
For high strength mixing needs.
Rotation speed
15 – 300 rpm
Torque
1.6 Nm
Operating modes
Normal
Mixing efficiency
High
Mixing strength
High
User interface
via Aurora software and motor controller unit.
Compatibility
Compatible with CSTR bioreactors, available from BPC Instruments
Dimensions
9.3 x 6.7 x 16.6 cm
Weight
2.36 kg
Typical usage
Long term mixing in large CSTR bioreactors
Mixing features
Single stirring direction (clockwise or counterclockwise), alternating stirring directions, continuous, intermittent, different mixing intensities in a cycle.
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
0.5 MB
Related products
-
Smart Agitation Hub
Recommended price
€550,00 -

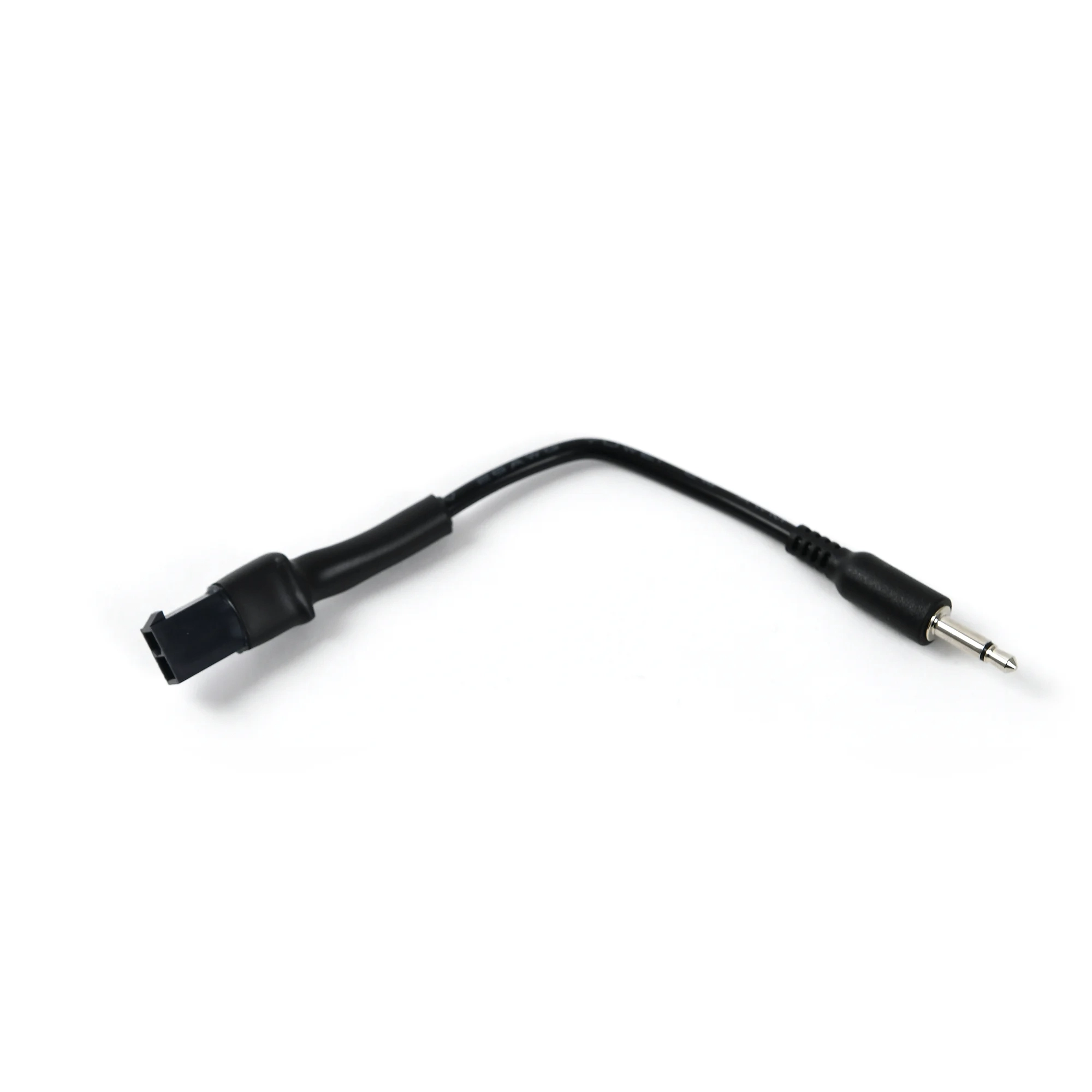

Aux – Molex Adapter Cable
Recommended price
€30,00 -
Brushless DC Motor Kit 18
Recommended price
€3 630,00 -
Brushless DC Motor Kit for CSTR-5/10
Recommended price
€1 189,00
Common questions about agitation systems
What reactor sizes do you offer agitaton for?
Our agitation systems can be used in reactors starting at 500 mL, up to 20 L. FOr smaller reactors, we recommend the shaking water bath.
Can agitation be remotley controlled?
All agitation systems that run through our instruments or motor control unit (Smart Agitation) can be controlled remotely via our Aurora software. BPC® Move is a standalone agitator with manual control attached.
Do the agitators need a power source?
Yes. All our agitation systems are operated using a mains power supply.
