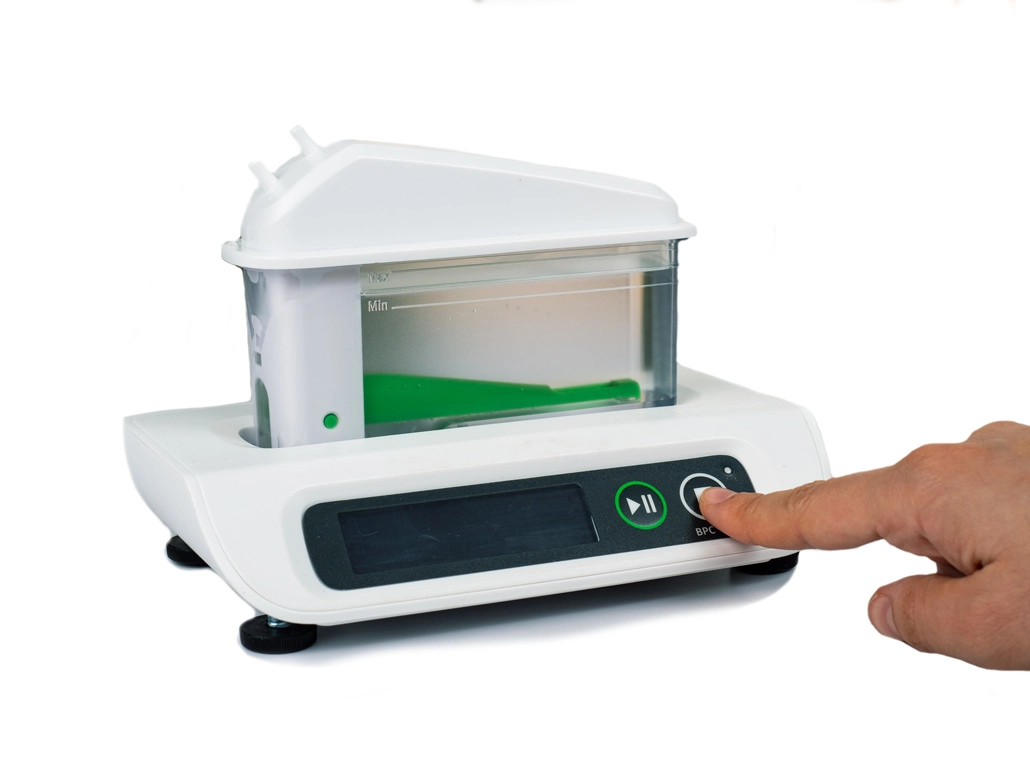

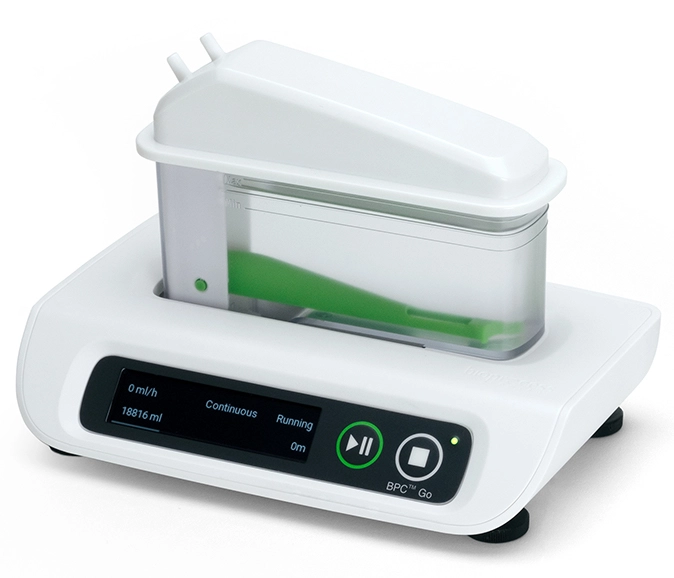

BPC® Go
BPC® Go is the next-generation gas volume and flow meter containing an in-built computer to simplify and secure low gas flow measurements.
- Gas volume and flow meter
- 2 or 9 mL measurement resolution
- Aurora™ software included
The next generation of gas volume and flow meter for laboratory applications
BPC® Go automatically measures both wet and dry gases at laboratory scale with high precision and accuracy, without the need for recalibration. Built to the highest standards of Scandinavian quality, it is simple to set up and use for online, real-time monitoring from any location. With local data storage and remote access, laboratories can follow long running anaerobic batch tests from the lab, office or another location.
Choose between
2 and 9 mL resolution
Customise your set-up for your application area
Connect up to
6 BPC® Go
Centralise your process monitoring using BPC® Connect
Software
Aurora™ included
Set up, monitor and export data in the browser
Features
Automated testing
Measure gas volume and flow automatically, with minimal intervention required during a test.
Browser based software
Included Aurora™ software lets users set up, monitor and review experiments remotely and locally in the browser.
Automated compensation
Real time pressure, temperature and moisture compensation helps normalise gas volume and flow data to standard conditions.
Easy data export
Export experiment data as spreadsheet files with a uniform time axis for further analysis and reporting.
Controlled mixing
Connect to our agitation systems to control and maintain adjustable mechanical agitation.
Read results from anywhere
Connect to your local network or the internet, so that you can monitor results from any device, including tablets and mobile phones.
Modular maintenance
The modular design makes it easier to exchange consumable parts without the need for service.
Why choose BPC® Go?
Easy to start up, easy to use
It’s automatic! A simple, intuitive user interface makes setting up and monitoring any experiment easy. Just fill the flow cell with water, connect to a power source, then start recording.
Accurate measurements in any environment
Utilising real-time temperature, pressure and humidity compensation ensures all gas volume and flow measurements are accurate across different environments
Operational flexibility
BPC® Go is highly flexible for various applications. It can be operated as a stand-alone instrument for a specific application or combined with other technologies. BPC® Go also enables running experiments in both batch and continuous modes of operations.
Structured data handling
Gas measurements, experiment settings and exported results are handled in one platform, reducing the need for separate files and manual calculations.
Calibration free

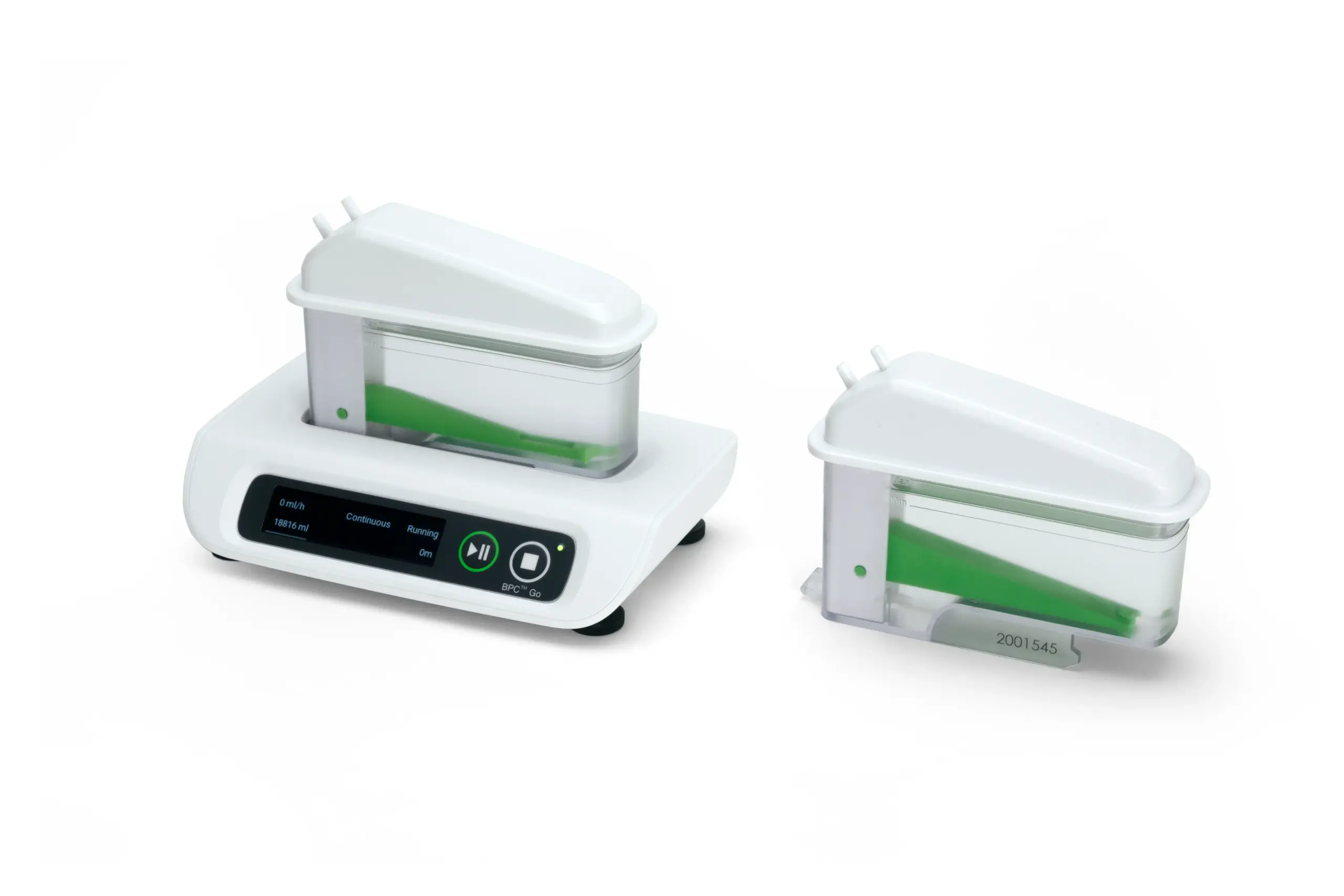

BPC® Go’s calibration-free flow cell units come in two resolutions (2 and 9 ml) and can be exchanged at any point.
Get a Quote
Within 48 Hours
Request a quote from our sales team for gas flow and volume meters.
Aurora™ Software inlcuded
Aurora™ is the experiment software included with BPC® Go. It is accessed through a web browser and gives users a clear way to set up tests, follow gas production, store data and export results without installing software on an external computer.
With local data storage and remote access, laboratories can follow long running anaerobic batch tests from the lab, office or another location.
- Experiment setup in the browser
- Real time gas production monitoring
- Local data storage on the instrument
- Data export for further analysis
- Remote access from computer, tablet or smartphone
Pair it with BPC® Connect
BPC® Connect is a compact coordination hub designed for the BPC® Go system, allowing up to six BPC® Go units to operate as one connected setup. It links the instruments over a local network and brings control, monitoring, and data handling into a single workflow in Aurora, with results stored centrally for easy access and export.
By accessing through BPC’s web software Aurora as a single system, you get central storage for all connected units, plus an easier way to work across labs, rooms, or shared setups where several people need access to the same dataset.

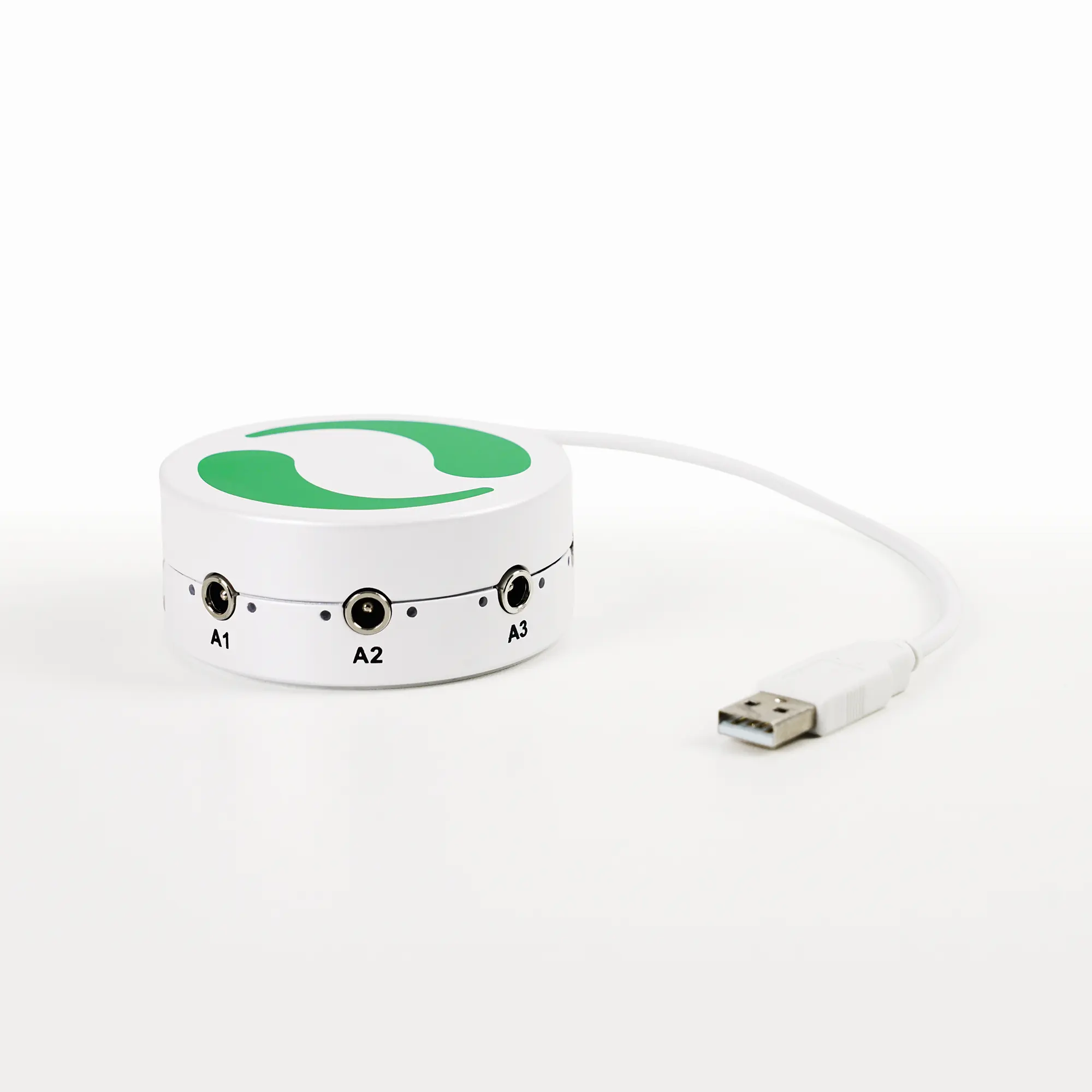

Add sensors with BPC® DAQ
BPC® DAQ is a compact data acquisition unit designed for the BPC® Go system, enabling real-time monitoring of analogue sensor data alongside gas production measurements. It connects directly to BPC® Go and supports up to four analogue sensors, such as temperature, pH or ORP, with automatic passive and active signal detection for straightforward plug-and-play integration.
BPC® DAQ adds process monitoring to the BPC® Go platform and enables acquisition of analogue sensor signals commonly used to track biological process conditions, including:
- Temperature
- pH
- ORP / redox potential
- Other analogue or digital process parameters
Want to know more?
Need help choosing a gas flow and volume meter?
Tell us about your sample throughput, reactor volume and test type. We can help you identify the right configuration.
Technical Specifications
Measurement
Working principle
Liquid displacement and buoyancy
Measurement resolution
2 and 9 mL
Detection capacity
10 million data points
Measuring range
0.2 to 1500 mL/h* for 2 ml flow cells
1 to 6000 mL/h* for 9 ml flow cells
Repeatability
CV ≤ 3% for 2 ml flow cells
CV ≤ 1% for 9 ml flow cells
Gases
Non-aggressive gases (e.g. CH4, CO2, H2, N2,…)
Technical
Built-in sensors
Temperature, Pressure, Hall, Gyro
Connections
Ethernet, Power supply, USB B, Motor control
Display
OLED 2.8”
256×64 white
Housing
Aluminium and plastic
Power supply
12 V DC / 1.0 A with 100-240 VAC
Usage
Indoor
Measurement medium
Deionised or distilled water
Operation temperature
10 – 50 °C
Operation pressure
-50 – 50 mbar
Dimensions
Base unit
188 x 114 x 41 mm, 366 g
Flow cell unit
138 x 102 x 45 mm, 134 g (without water)
Power supply unit
89 x 48 x 33 mm, 127 g
Gas connector diameter
ID: 2.4-2.6 mm, OD: 4.2-4.7 mm
Recommended tube size
ID: 3.2 mm, OD: 6.4 mm
Downloads
Download product brochures and comparison documents.
Looking for manuals or other technical documentation?
You can find them in BPC Academy, our customer resource and training centre.
3 MB
Related products
-
BPC Connect
Recommended price
€3 400,00 -
BPC DAQ
Recommended price
€1 400,00 -

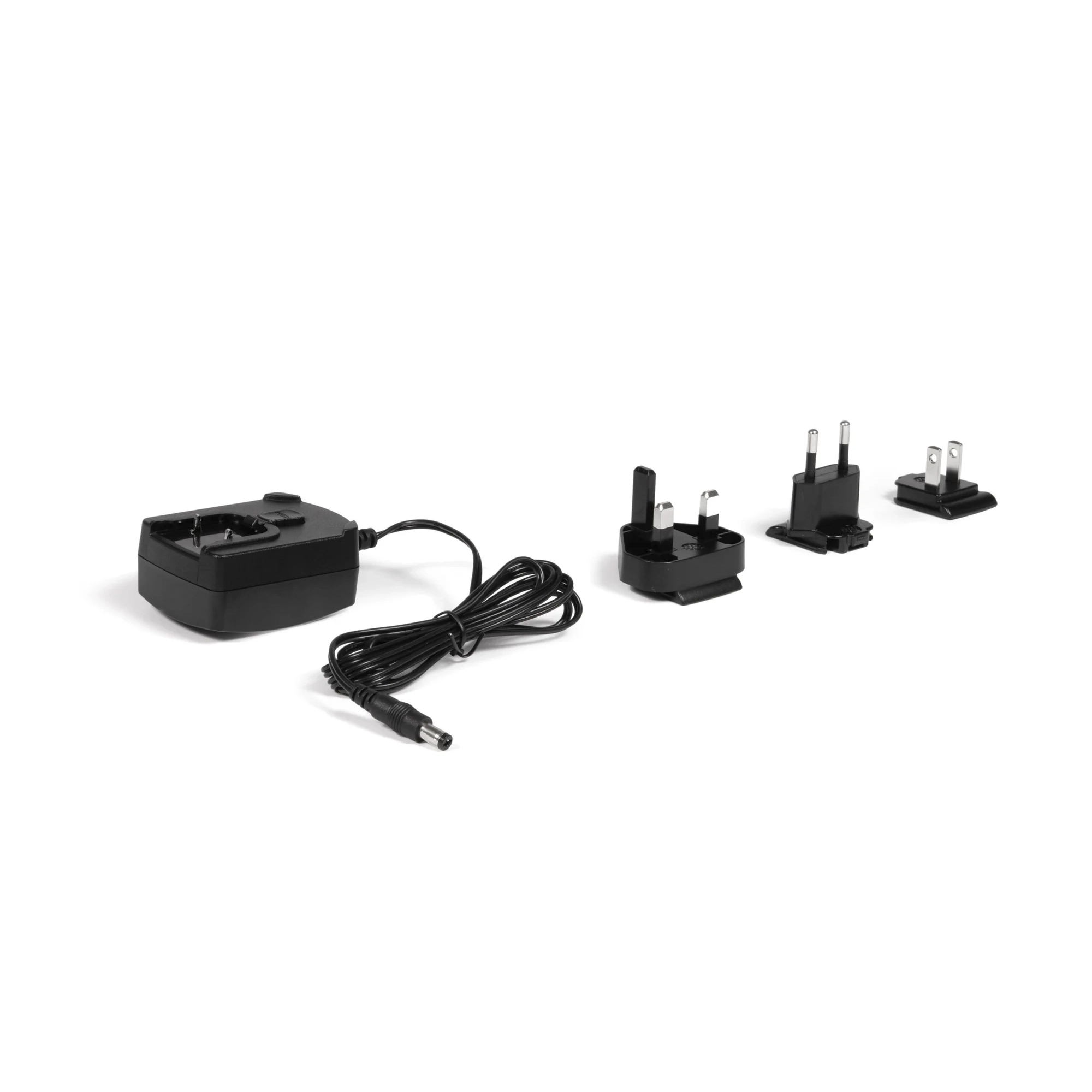

Main Unit Power Adapter MK 3
Recommended price
€130,00 -

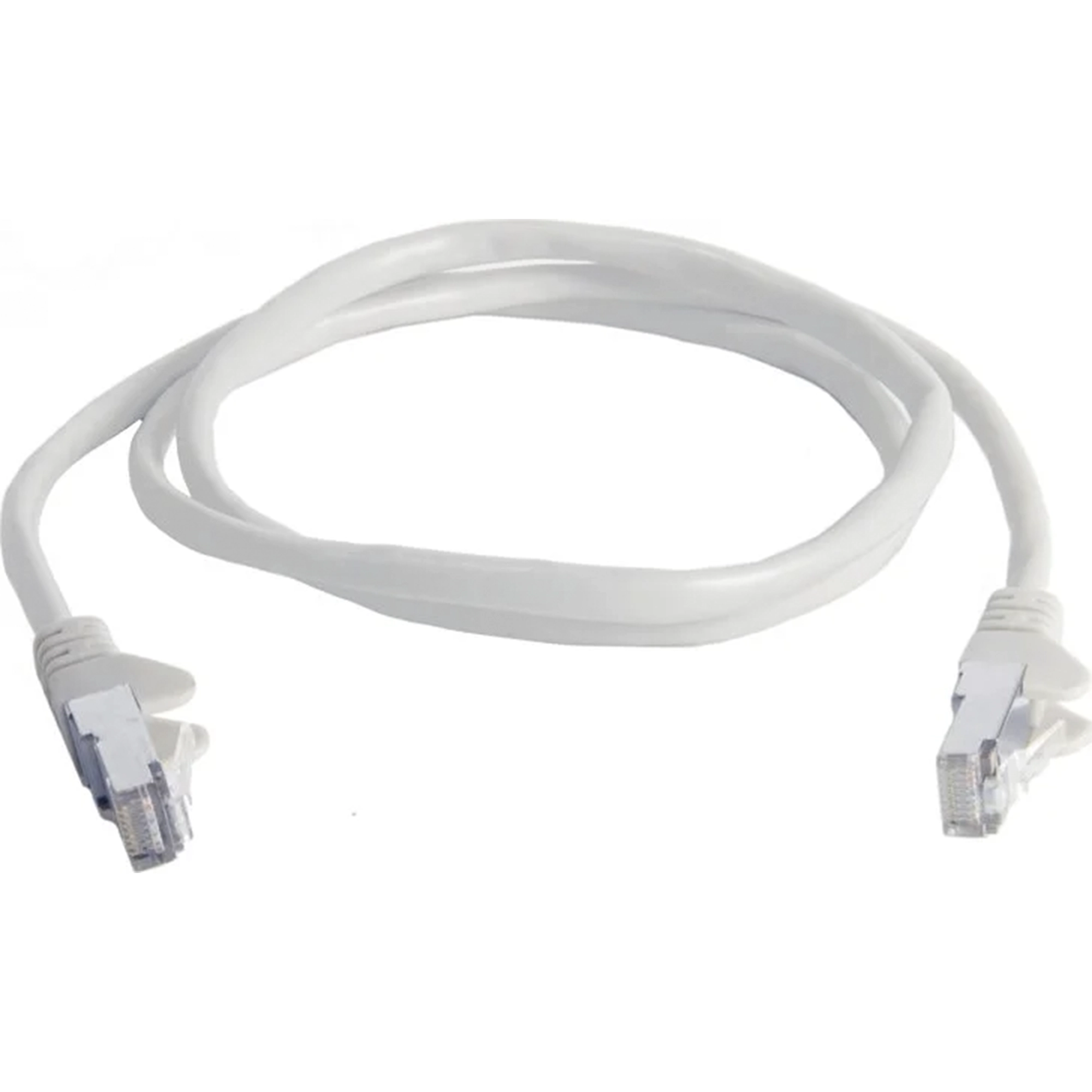

Network Cable 1.0 m
Recommended price
€25,00
Common questions about BPC® Go
What is BPC® Go used for?
BPC® Go is used for automated gas flow and volume measurements at low volumes (0.2 to 6000 L/h)
Can BPC® Go be used to monitor other things, such as temperature?
Yes! By coupling with our BPC® DAQ system up to four analogue sensors can be connected and monitored via BPC® Go’s software interface.
Does BPC® Go require an external computer?
No. BPC® Go has an embedded server and local data storage. Aurora™ software is accessed through a web browser, so no software installation on an external computer is required.
Can several BPC® Go units be used together?
Yes. Up to six BPC® Go units can be connected through a centralised system and software by utilising BPC® Connect.
Talk to an expert about BPC® Go
Share your application, expected sample throughput and the type of gas measurement you need. Our product specialists can help you choose the right BPC® Go and suitable accessories for your laboratory.
