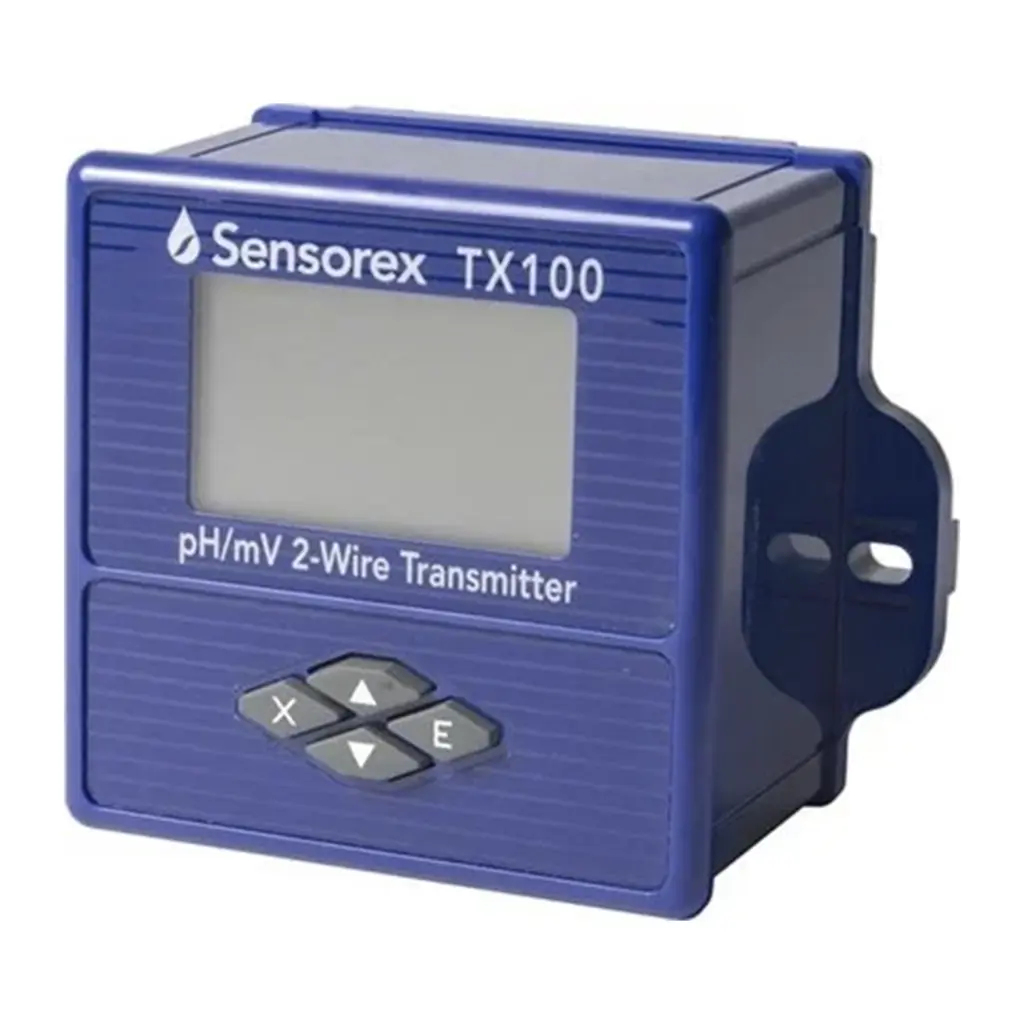

TX100 Transmitter

Technical specifications

Measurement range (PH):

0.00 to 14.0, 0.01 PH resolution, +/- 0.01 accuracy

Measurement range (ORP/MV):

-1999 MV to 1999 MV, 1 MV resolution, +/- 2 MV accuracy

Temperature range:

-20 °C to 110 °C , 0.1 °C resolution, +/- 0.2 °C accuracy

Current output range:

2.00 MA to 24 MA, 0.01 MA resolution, +/- 0.005 MA accuracy, 500V input/output isolation

Enclosure:

Nema 4X IP65, ABS case with push-button control pad; HWD: 3.9" (99.1MM)x 3.9"(99.1MM) x 2.9"(74.7MM)

Mounting options:

panel, wall, DIN rail or pipe mounting

Ambient operating temperature:

0 – 60 °C

Storage temperature:

10 – 70 °C

Ambient humidity:

0 – 95%, non-condensing

Location:

Designed for non-hazardous envionments

Maximum sensor to transmitter distance:

30 feet (9.1M)

Conduit openings:

2 each 3/8" NPT openings(cord grips included)

Temperature input:

2-wire PT1000 Ω RTD with automatic compensation

Power requirement:

12-24 V DC, MAX 600 Ω load

Weight:

0.45 KG
