CSTR-2G Kit

The CSTR bioreactors have a modular design, built with high-quality materials and robustness in mind. Intended for anaerobic fermentation tests, both for continuous and batch mode operations, the flexible design and user-friendly functionality makes them the ideal experiment platform for simulating full-scale fermentation processes at a laboratory scale. It contains two GL 32 ports (for feeding and discharging) as well as two GL 25 port for optional accessories/fittings.

Compatible with a Thermostatic Water Bath Lid 9 Bottles (2 L) Mk2.

Please note, this is a complete CSTR-2G kit containing:

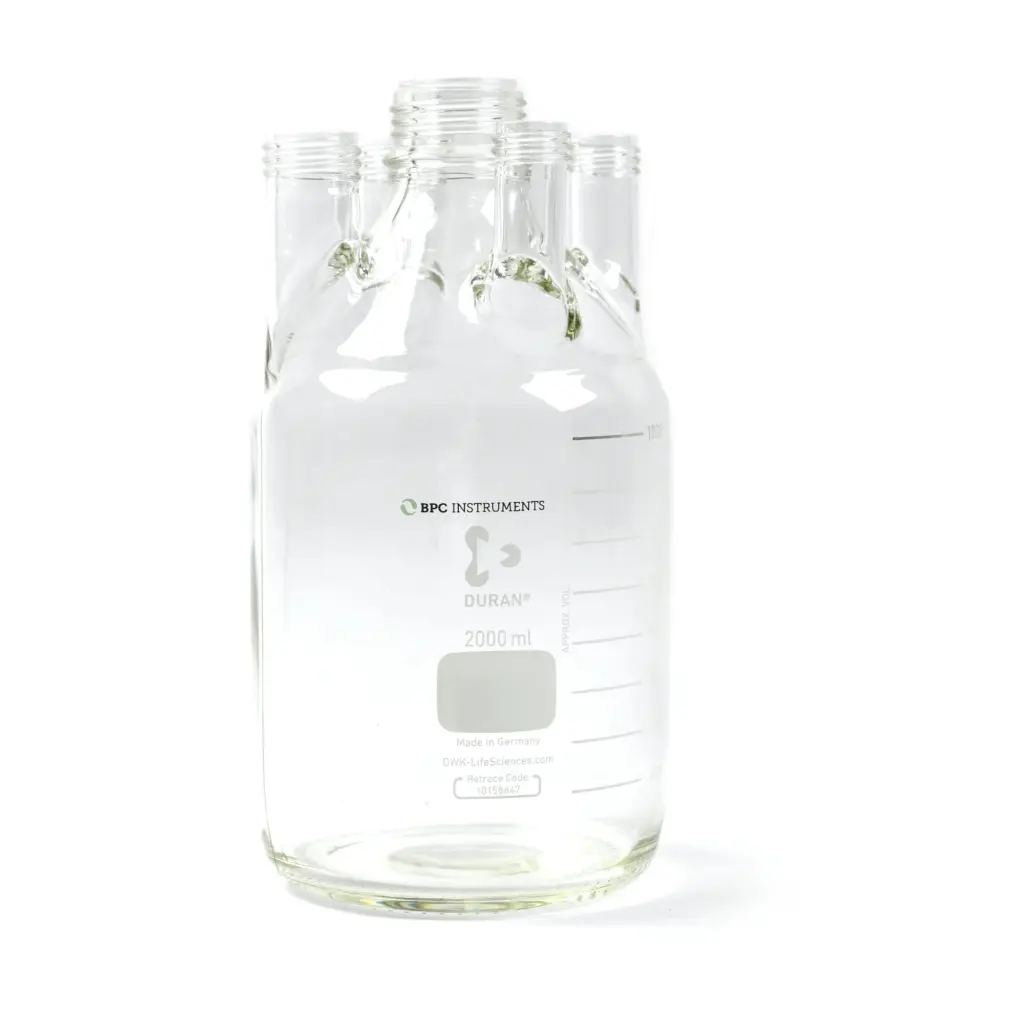

• • 1 x CSTR-2G Bottle (ART NO 05-0103-01)

• • 1 x Glass Funnel (ART NO 05-0107-02)

• • 1 x Bent Glass Pipe (ART NO 05-0106-02)

• • 2 x Silicone Ring GL 25 (ART NO 04-0106-01)

• • 2 x Silicone Ring GL 32 (ART NO 04-0106-02)

• • 2 x Screw Cap GL 25 (ART NO 04-0104-01)

• • 2 x Screw Cap With Hole GL 25 (ART NO 04-0105-01)

• • 2 x Screw Cap With Hole GL 32 (ART NO 04-0105-02)

• • 1 x Silicone Stopper (ART NO 05-0108-02)

Additionally, for stirring, the following parts need to be available:

• • 1 x Stirrer GL 45 2 L (ART NO 02-0102-02)

• • 1 x Axis Coupling for Brushless DC Motor (ART NO 01-0112-01)

• • 1 x Hex Key (ART NO 01-0113-01)

• • 1 x Brushless DC Motor (ART NO 01-0102-02)

Furthermore, in order to provide power and control signals, the following parts need to be available:

• • 1 x Brushless DC Motor Cable 250 mm (ART NO 01-0103-03)

OR

• • 1 x Brushless DC Motor Cable 1500 mm (ART NO 01-0104-02)

• • 1 x Motor Controller, Smart Agitation (ART NO 01-0109-02)

OR

• • 1 x Motor Controller, Standard (ART NO 01-0109-01)

• • 1 x Motor Controller Power Adapter (ART NO 01-0110-01)
