Motor agitation
Brushless DC Motor Kit for CSTR-5/10
Recommended price
1 189,00 €
SKU: 06-0201-02
Brushless DC motor kit for continuous stirred-tank reactors.
Description
Brushless DC motor kit, used in the following continuous stirred-tank reactors:
- CSTR-5G (ART NO 06-0000-01)
- CSTR-5S (ART NO 07-0000-01)
- CSTR-10S (ART NO 08-0000-01)

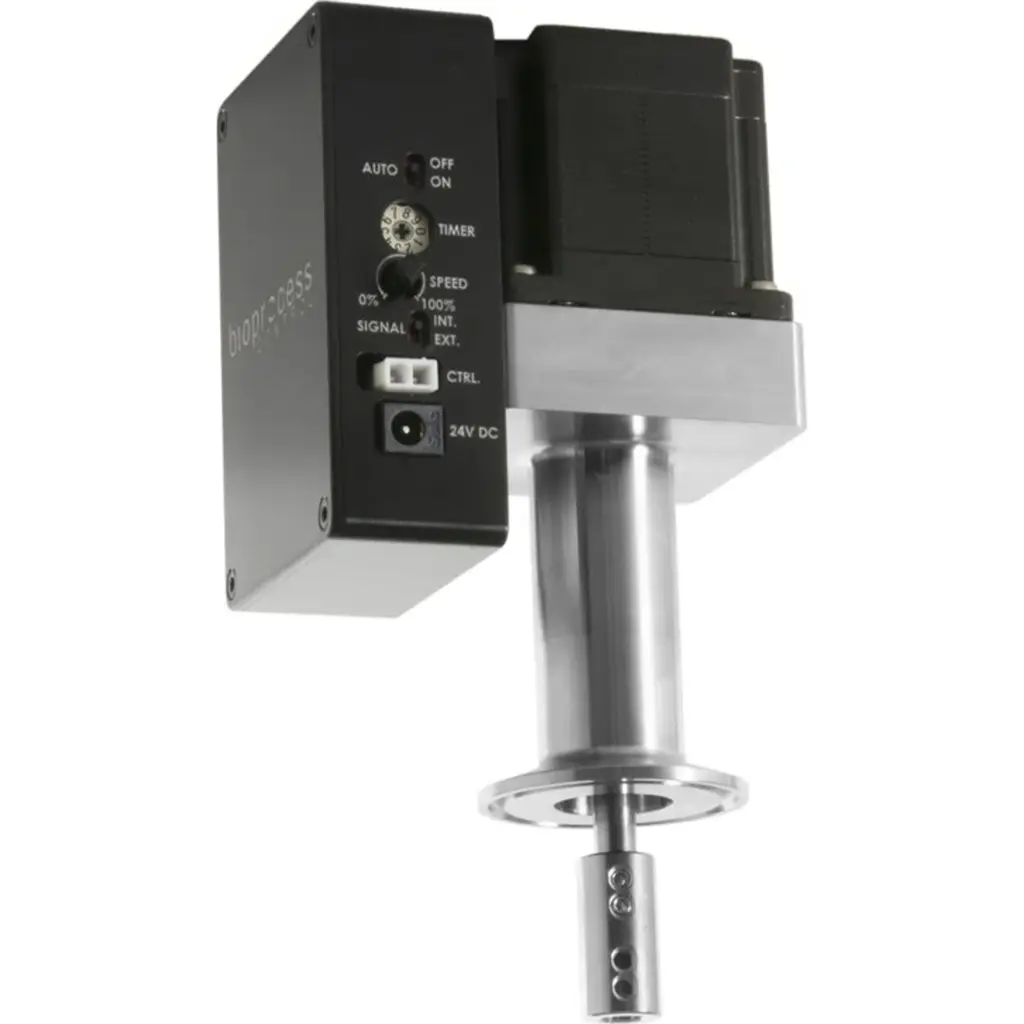

The multifunction brushless DC motor kit’s motor controller has a panel with the following settings:
-
- An AUTO switch is used to control the direction during the rotation of the mixers (i.e. single or bidirectional rotations)
- The timer dial can be set to 10 different intervals, which refer to the rotary switch delays.
- The rotation speed control dial shows the speed in percentage, where 100% equals full rotation speed of 300 RPM. 5-100% of full rotation equals 15-300 RPM in a linear relation.
- The motor can be controlled from an external signal via a 0-12 V motor controller signal cable (ART NO 01-0111-01). Sold separately.
The motor kit includes:
-
- 1 x Brushless DC motor for CSTR-5/10
- 1 x Axis coupling CSTR incl. screws (ART NO 06-0204-01)
- Shrink hose for axis coupling
Note: Power adapter (ART NO 01-0110-01) and gasket 50.5/23.0 mm (ART NO 07-0506-01) sold separately
Note: older versions my require a different power adapter (3-pole cable kit) please check with your sales representative
