Brushless DC Motor Kit 9

Multifunctional agitation system for AMPTS III, BPC Blue, BRS III and Gas Endeavour III  sample incubation units with brushless DC motors for long-life operation. Remote speed and on/off control via the software control interface. Manually adjustable direction and time interval, as well as timer function to set time periods for reversal. Modular design for low maintenance. Rotating speed range: 10-200 rpm. Suitable for standard 9 reactor configurations.

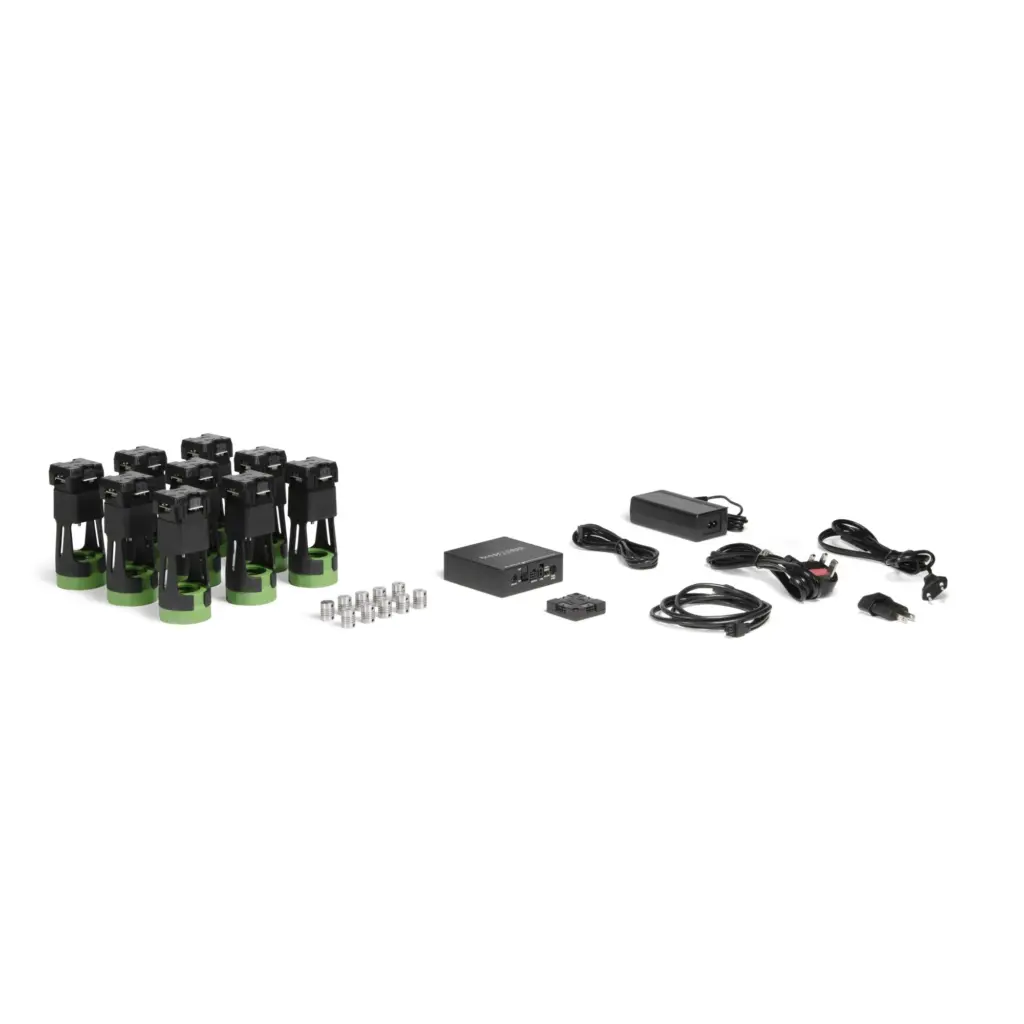

The Motor Package includes:

• 9 brushless DC motor (ART NO 01-0102-02)
• 9 bottle nut GL 45 (ART NO 22-0202-02)
• 1 motor controller standard (MCU)(ART NO 01-0109-01)
• 1 motor controller signal cable (ART NO 17-0003-01 or 94-0021-00)
• 1 brushless DC motor cable 1500 mm (ART NO 01-0104-02)
• 3 brushless DC motor cable 500 mm (ART NO 01-0103-04)
• 6 brushless DC motor cable 250 mm (ART NO 01-0103-03)
• 10 axis coupling for brushless DC motor (ART NO 01-0112-01)
• 1 brushless DC motor power splitter (ART NO 01-0311-01)
• 1 motor controller power adapter (ART NO 01-0110-01)
• 1 hex key (ART NO 01-0113-01)

Note: Motor controller units have different inputs and signal cables depending on the version. If you wish to connect the MCU to a BPC measurement unit check whether you require an AUX or MOLEX signal cable.
