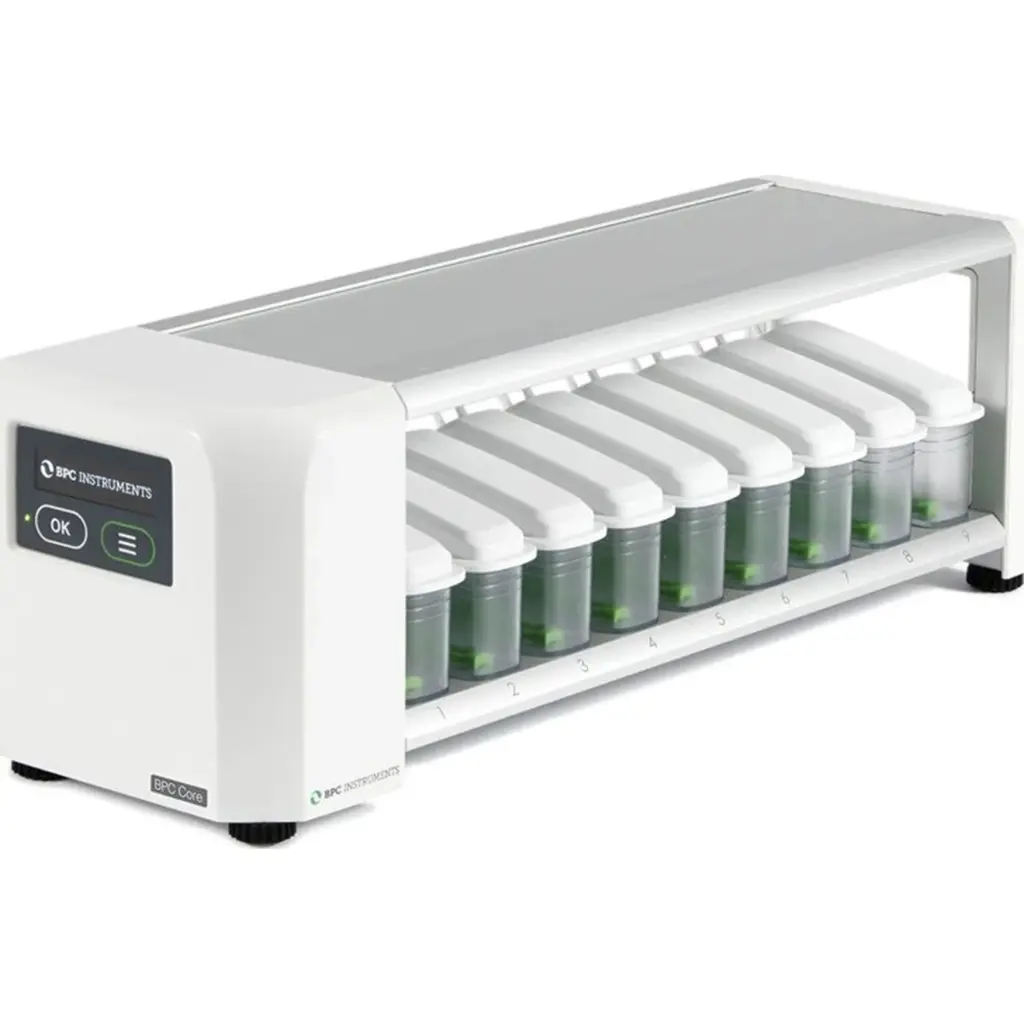

BPC Core Light

Technical specifications

Built-in Sensors:

Temperature, Pressure, Hall, Accelerometer

Connections:

Ethernet, Power supply, USB B, Motor Control

Display:

OLED 2.8" 256 x 64 White

Housing:

Aluminium and Plastic

Power Supply:

12 V DC/1.0 A with 100-240 V AC

Usage:

Indoor

Measurement Medium:

Deionised or Distilled Water

Operation Temperature:

0 – 50 °C

Operation Pressure:

-50 – 50 mBar

Dimensions and Weight:

BPC Core Base Unit: 55 x 19 x 17 cm;3000 g, Flow Cell Unit: 138 x 102 x 45 mm; 134 g (w/o water), Power Supply Unit: 89 x 48 x 33 mm; 127 g, Gas Connector Diameter: ID: 2.4-2.6 mm; OD: 4.2-4.7 mm, Recommended Tube Size: ID: 3.2 mm; OD: 6.4 mm

Working principle:

Liquid Displacement and Buoyancy

Number of Flow Cell Units:

18 or 9

Measurement Resolution:

2 and 9 mL

Detection Capacity:

30 000 Litres for 2 mL Flow Cell and 130 000 Litres for 9 mL Flow Cell

Measuring Range:

0.2 to 1500 mL/h for 2 mL Flow Cell and 1 to 6000 ml/h for 9 mL Flow Cell

Repeatability:

CV ≤ 3% for 2 mL Flow Cell and CV ≤ 1% for 9 mL Flow Cell

Gases:

Non-aggressive gases(e.g. CH4, CO2, H2, N2)
